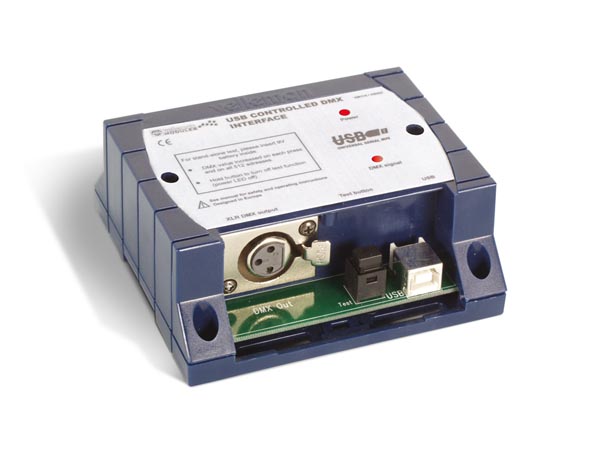

USB CONTROLLED DMX INTERFACE

  • PRODUCT NAME:

  • USB CONTROLLED DMX INTERFACE

  • ART NO:

  • K8062

  • Description:

  • Features:
    • This unit can control DMX fixtures using a PC and USB interface.
    • Test software and "DMX Light Player" software is downloadable. A DLL is provided to write your own software.
    • Furthermore, there is a stand-alone test function that outputs all 512 channels at a time with adjustable levels.
    • Kit includes: nice enclosure, USB cable, downloadable test software, DLL for own developments & free DMX light player.
    • Exists also in mounted version: VM116: USB CONTROLLED DMX INTERFACE
    Specifications:
    • Connected and powered through USB.
    • 512 DMX channels with 256 levels each. 3 pin XLR-DMX output connector.
    • Windows 98SE or higher compatible. DLL included to write your own software.
    • Optional 9V battery needed for stand alone test mode.
    • Solid state - fuse protection on DMX output. Dimensions: 106 x 101 x 44.5mm / 4.2 x 4 x 1.75"
