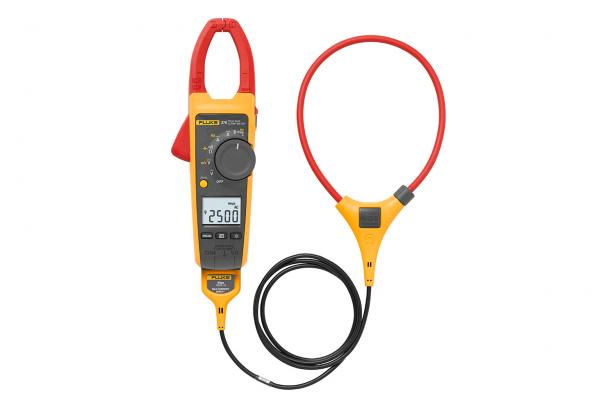

True RMS AC/DC Clamp Meter with iFlex

  • PRODUCT NAME:

  • True RMS AC/DC Clamp Meter with iFlex

  • ART NO:

  • Fluke 376

  • Description:

  • Expand Your Measurement Range with Increased Flexibility
    You can measure around awkward sized conductors with the Fluke 376 True RMS Clamp Meter with iFlex®, expanding your measurement range to 2500 A AC. With True RMS voltage and current measurements, the Fluke 376 can read up to 1000 V and 1000 A in both AC and DC modes.
    Specifications: Fluke 376 True RMS AC/DC Clamp Meter with iFlex®
    Electrical Specifications
    AC Current via Jaw
    Range
    374 and 375
    376
    600.0 A
    999.9 A
    Resolution
    0.1 A
    Accuracy
    2% ± 5 digits (10-100 Hz)
    2.5% ± 5 digits (100-500 Hz)
    Crest Factor (50/60 Hz)
    3 @ 500 A (375 and 376 only)
    2.5 @ 600 A
    1.42 @1000 A (376 only)
    Add 2% for C.F. > 2
    AC Current via Flexible Current Probe
    Range
    2500 A
    Resolution
    374 and 375
    0.1 A (≤ 600 A)
    1 A (≤ 2500 A)
    376
    0.1 A (≤ 999.9 A)
    1 A (≤ 2500 A)
    Accuracy
    3% ±5 digits (5 – 500 Hz)
    Crest Factor (50/60Hz)
    3.0 at 1100 A (375 and 376 only)
    2.5 at 1400 A
    1.42 at 2500 A
    Add 2% for C.F. > 2
    Distance from Optimum
    i2500-10 Flex
    i2500-18 Flex
    Error
    Flexible current probe
    A
    0.5 in (12.7 mm)
    1.4 in (35.6 mm)
    ± 0.5%
    B
    0.8 in (20.3 mm)
    2.0 in (50.8 mm)
    ± 1.0%
    C
    1.4 in (35.6 mm)
    2.5 in (63.5 mm)
    ± 2.0%
    Measurement uncertainty assumes centralized primary conductor at optimum position, no external electrical or magnetic field, and within operating temperature range.
    DC Current
    Range
    374 and 375
    376
    600.0 A
    999.9 A
    Resolution
    0.1 A
    Accuracy
    2% ± 5 digits
    AC Voltage
    Range
    374 and 375
    376
    600.0 V
    1000 V
    Resolution
    374 and 375
    376
    0.1 V
    0.1 V (≤ 600.0 V)
    1 V (≤ 1000 V)
    Accuracy
    1.5% ± 5 digits (20 – 500 Hz)
    DC Voltage
    Range
    374 and 375
    376
    600.0 V
    1000 V
    Resolution
    374 and 375
    376
    0.1 V
    0.1 V (≤ 600.0 V)
    1 V (≤ 1000 V)
    Accuracy
    1% ± 5 digits
    mV dc
    Range
    375 and 376
    500.0 mV
    Resolution
    0.1 mV
    Accuracy
    1% ± 5 digits
    Frequency via Jaw
    Range
    375 and 376
    5.0 - 500.0 Hz
    Resolution
    0.1 Hz
    Accuracy
    0.5% ± 5 digits
    Trigger Level
    5 – 10 Hz, ≥10 A
    10 – 100 Hz, ≥5 A
    100 – 500 Hz, ≥10 A
    Frequency via Flexible Current Probe
    Range
    375 and 376
    5.0 - 500.0 Hz
    Resolution
    0.1 Hz
    Accuracy
    0.5% ± 5 digits
    Trigger Level
    5 – 20 Hz, ≥ 25 A
    20 – 100 Hz, ≥ 20 A
    100 – 500 Hz, ≥ 25 A
    Resistance
    Range
    374
    375 and 376
    6000 Ω
    60 kΩ
    Resolution
    374
    0.1 Ω (≤ 600 Ω)
    1 Ω (≤ 6000 Ω)
    375 and 376
    0.1 Ω (≤ 600 Ω)
    1 Ω (≤ 6000 Ω)
    10 Ω (≤ 60 kΩ)
    Accuracy
    1% ± 5 digits
    Capacitance
    Range
    1000 μF
    Resolution
    0.1 μF (≤ 100 μF)
    1 μ F (≤ 1000 μF)
    Accuracy
    1% ± 4 digits
    Mechanical Specifications
    Size (L x W x H)
    246 mm x 83 m x 43 mm
    Weight
    388 g
    Jaw Opening
    34 mm
    Flexible Current Probe Diameter
    7.5 mm
    Flexible Current Probe Cable Length
    (head to electronics connector)
    1.8 m
    Environmental Specifications
    Operating Temperature
    10°C – +50°C
    Storage Temp
    -40°C – +60°C
    Operating Humidity
    Non condensing (< 10 –°C)
    ≤ 90% RH (at 10°C – 30°C)
    ≤ 75% RH (at 30°C – 40°C)
    ≤ 45% RH (at 40°C – 50°C)
    Operating Altitude
    3000 meters
    Storage Altitude
    12,000 meters
    EMC
    EN 61326-1:2006
    Temperature Coefficients
    Add 0.1 x specified accuracy for each
    degree C above 28°C or below 18°C
    Safety Specifications
    Safety Compliance
    CAN/CSA-C22.2 No. 61010-1-04
    ANSI/UL 61010-1:2004
    ANSI/ISA-61010-1 (82.02.01):2004
    EN/IEC 61010-1:2001 to
    1000V Measurement Category (CAT) III
    600V Measurement Category (CAT) IV
    Pollution Degree 2
    EN/IEC 61010-2-032:2002
    EN/IEC 61010-031:2002+A1:2008
    Agency Approvals

    Batteries
    2 AA, NEDA 15A, IEC LR6
