THREE-IN-ONE LAB UNIT (Scope, Function generator and Power supply)

  • PRODUCT NAME:

  • THREE-IN-ONE LAB UNIT (Scope, Function generator and Power supply)

  • ART NO:

  • LAB2

  • Description:

  • 30% DISCOUNT
    PRICE BEFORE:1500  PRICE NOW:1050

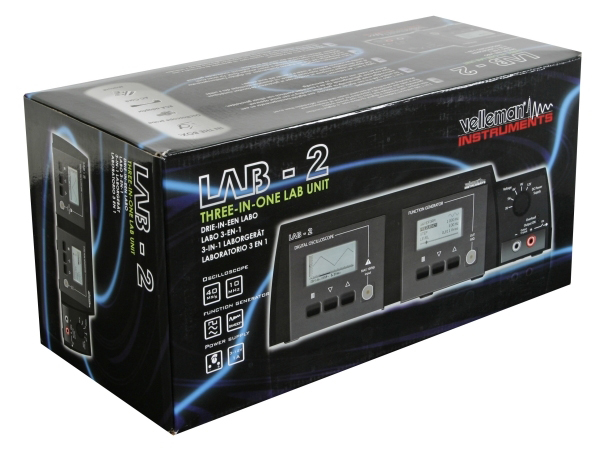

    Another 3-in-1 unit from Velleman!
    Following the success of our LAB1: THREE-IN-ONE LAB UNIT , a LAB-2 unit is born.
    This unique unit includes a digital oscilloscope, a digital function generator and a simple but easy-to-use power supply. The 3 units are electrically separated for ease of measurement.
    Measuring and testing just became easier and more affordable than ever!

    Specifications:
    • Oscilloscope 40MS/s:
      • Bandwidth: up to 10 MHz (-3dB*)
      • Input range: 1mV to 20V/division in 14 steps
      • Input coupling: DC, AC and GND
      • Real-time sample rate up to 40MS/s
      • AD resolution: 8 bits
      • Time base: 250ns to 1h per division
      • Auto set-up function
      • Probe x10 readout option
      • Readouts: DC, AC+DC,True RMS, dBm, Vpp, Min-Max. (±2.5%)
      • Audio power measurement from 2 to 32 ohms
      • Max. 100Vp AC+DC (input 600Vp using x10 probe)
      • Standard 1M ohms 60MHz x1 - x10 probe (incl.)
      • White LED backlight
    • 1MHz function generator:
      • DDS type generator (Direct Digital Synthesis)
      • DAC resolution: 10 bits
      • Frequency range: from 1Hz to 1.000.000Hz (± 0.01%)
      • Frequency steps: 1Hz, 10Hz, 100Hz, 1kHz and 10kHz
      • Waveforms: sine, square and triangle
      • Sweep function with bi-direction option
      • Output voltage: max. 15Vpp
      • Real output level measurement: dBm / Vrms or Vpp readout (±3%)
      • Typical sine wave distortion (THD): < 0.1% @ 0dB / 600 ohms
      • Square wave rise/fall time: typ. 0.2µs
      • Output impedance: 50 ohms
      • Multi-language menu (Eng / Fre / Dut / Ge / Es )
      • White LED backlight
    • Power supply:
      • Voltage output (fixed voltages): 3V, 5V, 6V, 9V, 12V ( ±5% )
      • Peak output current: 1A
      • LED Output overload indicator
      • LED Output ON indicator
      • Output ON/OFF switch
    • In the box:
      • LAB-2 unit
      • Oscilloscope probe
      • RCA adaptor
      • Manual
      • AC cord
    • *: -4dB at: 1mV, 2mV, 5mV, 0.1V and 2mV
