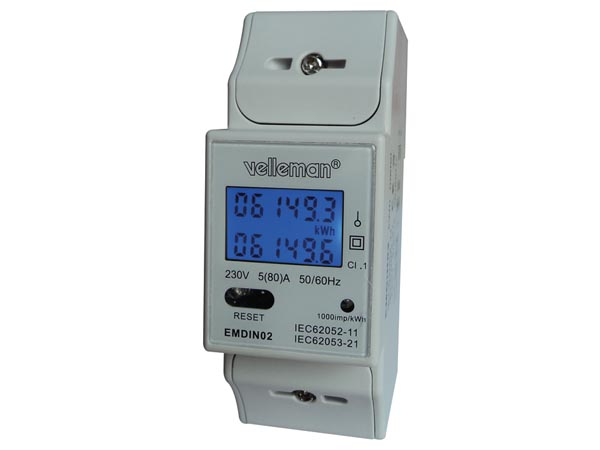

This single-phase DIN rail kWh meter is a new generation of single-phase electronic watt-hour meters, adopting micro-electronic techniques, LSI circuits and advanced digital and SMT techniques. The meter is in conformity with the relevant technical requirements of Class 1, Class 2 and IEC62052-11, IEC62053-21. It accurately and directly measures 50/60 Hz active energy consumption from single-phase AC electricity grids. The current specification is an important parameter for energy meters as it signifies a meter's ability to accurately measure the power consumed by a user's electrical load. There are generally two parts to this specification: the basic current (Ib) for direct-connected meters and the maximum current I max. Of these current ratings, you will typically see the current specification defined in terms of Ib with the I max value shown in parentheses. For example, some common values for the energy meter current specification include 5 (40) A, 5 (80) A or 10 (100) A.
Features:
Specifications:
-
Voltage: 230 V
-
Current: 5 (80) A
-
Accuracy class: 1.0
-
Frequency: 50 / 60 Hz
-
Display mode: LCD 5+1 digits = 99999.9 kWh
-
Power consumption: <= 0.4 W (8 VA)
-
Temperature range: -20 to 65 °C
-
LED indicator: 1 blink per pulse
-
With PNP transistor
-
RESET: To reset the device, keep your finger on the infrared eye (marked
Reset) for 3 to 12 seconds.
Upper row will reset to ZERO
Lower row shows the total of kW/h permanently.
-
Pulsed output: 1000 imp/kWh
-
Voltage: 12 to 27 V
-
Current: 27 mA
-
Impulse width: 90 ms
-
Notes:
-
Dimensions (LxWxH): 100 x 35 x 60 mm
-
Cable cross-sectional area: min. 7 mm², max: 38 mm²
-
Torque: max. 140 Nm
-
Width: 2 DIN modules
