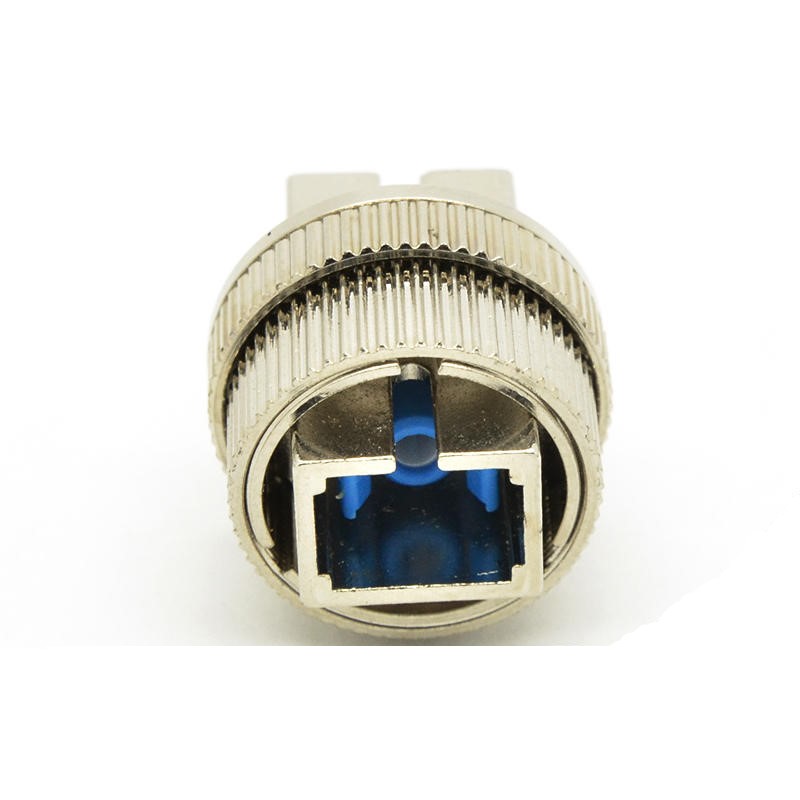

SC Adjustable Fiber Optic Attenuator, 1-30db Optional

  • PRODUCT NAME:

  • SC Adjustable Fiber Optic Attenuator, 1-30db Optional

  • ART NO:

  • AT02335T

  • Description:

  • As an optical passive device, attenuators mainly used in fibre optic to debug optical power performance & optical instrument calibration correction & fibre signal attenuation to ensure the optical power in a stable and desired level in the link without any changes on its original transmission wave. Commercial Grade: SC Variable Optical Attenuator ( VOA ) ideal for both multimode and single-mode fibre optic applications. Reliably Tested: Every product is tested after production, and is Rohs compliant. Features: Attenuation range of 0dB to 30dB. Can be used without fibre signal meter. Dust caps protect against debris and contamination. Free-hanging or panel-mount design. Dimensions : 2.5” x 4” x 0.5”

    Specification:
    Product Name
    SC Adjustable Fiber Attenuator
    Ferrule Type
    Zirconia Ceramic
    Attenuation
    1~30dB
    Transfer Mode
    SM/MM
    Attenuation Accuracy
    1-9dB±0.5dB, 10-25dB±10%
    Operating Wavelength(nm)
    1310nm,1550nm,1310&1550nm
    Polarization Dependent Loss
    ≤0.2dB
    Return Loss
    ≥55dB
    Humidity
    95%RH
    Max Optical Input Power
    200mW
    Storage Temp Range
    -40~85°C
    Operating Temp Range
    -40~80°C

    Apply To: Telecommunication Networks, Data Networks, Video & CATV, Test and measurement, FTTX.
