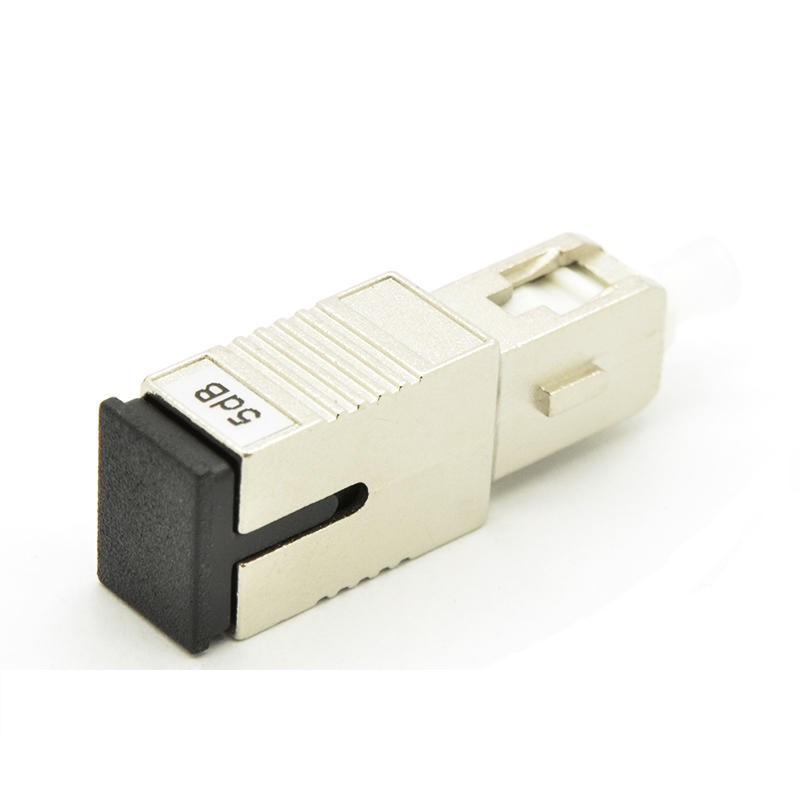

SC 1310/1550nm Singlemode Fiber Optic Attenuator

  • PRODUCT NAME:

  • SC 1310/1550nm Singlemode Fiber Optic Attenuator

  • ART NO:

  • AT02

  • Description:

  • SC/UPC Single-mode Optical Plug-type Attenuator, 1310&1550nm 1~25dB Optional
    Fibre optic attenuators are used in fibre optic communications to reduce the optical fibre power by a certain level. The most commonly used type is female to male plug type fibre optic attenuator. It has the optical fibre connector at one side and the other side is a female type fibre optic adapter, fibre optic attenuator name is based on the connector type and the attenuation level. The SC fibre optic attenuators consist of a male SC connector on one end and a female SC connector on the other end. When a cable end is inserted into the female end, the remaining male end can be connected to the equipment where the cable would otherwise connect directly, but providing the desired signal strength reduction. This attenuator is available in many dB attenuation values between 1dB and 25dB.

    Specification:
    Product Name
    SC Fixed Male to Female Attenuator
    Ferrule Type
    Zirconia Ceramic
    Attenuation
    1~25dB
    Transfer Mode
    SM/MM
    Attenuation Accuracy
    1-9dB±0.5dB, 10-25dB±10%
    Operating Wavelength(nm)
    1310nm,1550nm,1310&1550nm
    Polarization Dependent Loss
    ≤0.2dB
    Return Loss
    ≥55dB
    Humidity
    95%RH
    Max Optical Input Power
    200mW
    Storage Temp Range
    -40~85°C
    Operating Temp Range
    -40~80°C

    Apply To: Telecommunication Networks, Data Networks, Video & CATV, Test and measurement, Local Area Network, Equipment, FTTX.

    Feature:
    1. High Precision Fiber Optic Ceramic Ferrules.
    2. Snap-in Body for Fast Mating and De-Mating.
    3. Highly Reliable Physical Contact Connectors.
    4. Accurate Attenuation.
    5. 1310 to 1550nm Wavelength Single-mode Attenuators.
    6. Attenuating material-Ion Doped Fiber.
    7. Ceramic ferrules provide precise alignment.
