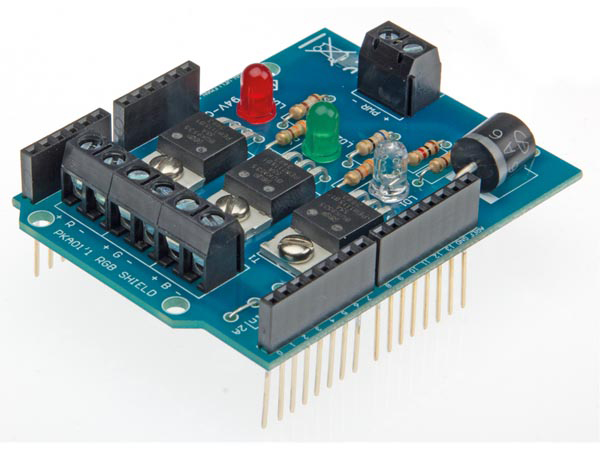

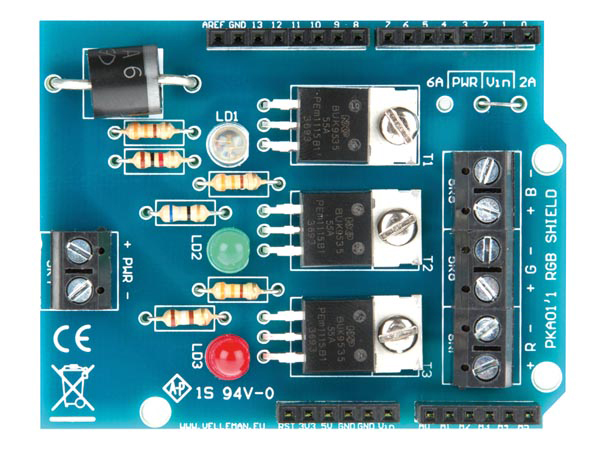

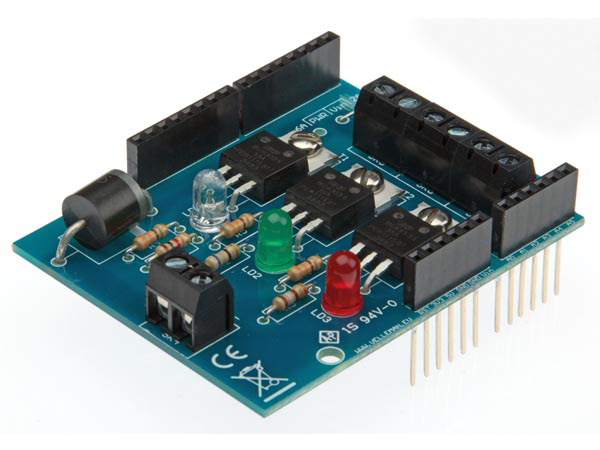

RGB SHIELD FOR ARDUINO®

  • PRODUCT NAME:

  • RGB SHIELD FOR ARDUINO®

  • ART NO:

  • KA01

  • Description:

  • Control 3 dimmer channels (1 x RGB or 3 single channels) with Arduino UNO. Also available as completely mounted module VMA01: RGB SHIELD FOR ARDUINO.

    Features:
    • Downloadable example sketch.

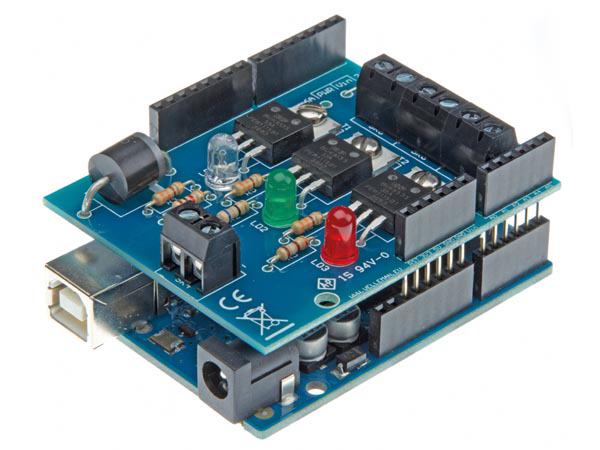

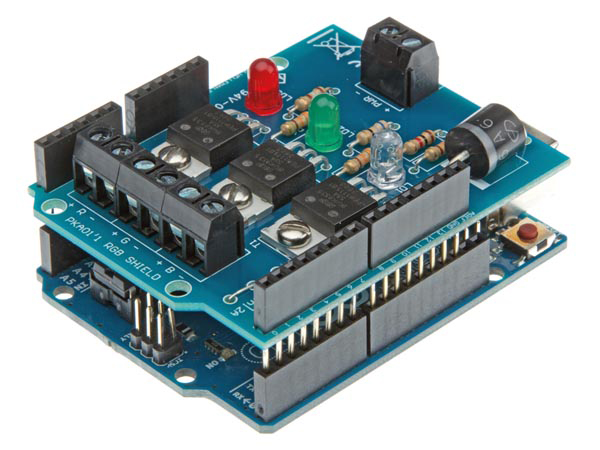

    • Stackable design: the shield can be stacked with other shields.
    • Large user community.
    • Requires 1 Arduino UNO™ (not included).
    Specifications:
    • 2 A load via Vin or 6 A load via the external power.
    • 12 or 24 V external power supply.
    • Uses pin 3, 5, 6 PWM on an Arduino UNO™ board.
    • Dimensions: 68 x 53mm / 2.67 x 2.08"
