PRODUCT NAME:

PC FUNCTION GENERATOR 0-1MHz

ART NO:

PCG10

Description:

• Frequency range: from 0.01Hz to 1MHz
• Crystal-based stability
• Optically isolated from the PC
• Low sine wave distortion
• TTL-level synchronisation output
• Stores up to 32K of waveform points
• Standard waveforms: sine, square and triangle
• Predefined library waveforms included: noise, sweep, ...
• Includes Windows™ integrated software for the function generator and Velleman PC oscilloscopes

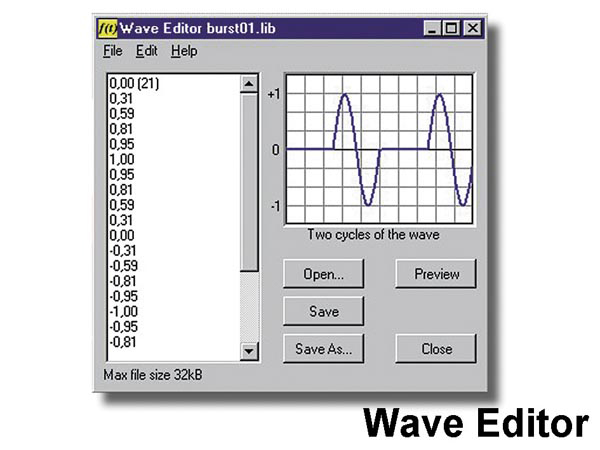

• You can create your own waveforms with the integrated signal wave editor
• Can be chained with Velleman PC oscilloscopes to the same PC printer port (LPT1, 2 or 3)
• Extended bode plot possibility, used with Velleman PC scopes
• Function generator screen with signal preview
• Kit-version available: K8016

• Comes with adapter: no
• Power supply: standard 12V DC adapter, 800mA (PS1208)
• Direct digital wave synthesis (DDS), 32K wave table
• Distance control via RS232
• Frequency setting resolution: 0.01%
• Amplitude range: 100mVpp to 10Vpp @ 600ohm load
• Amplitude resolution: 0.4% of full scale
• Offset: from 0 to -5V or +5V max. (resolution 0.4% of full scale)
• Vertical resolution: 8 bits (0.4% of full scale)
• Maximum sample rate: 32MHz
• Typical sine wave distortion (THD): < 0.08%
• Output impedance: 50ohm
• Dimensions: 235 x 165 x 47mm (9.3" x 6.5" x 1.9")
• Includes:
  • PCG10 unit
  • PC parallel cable
  • Practical manual
  • CD with PCLab2000 software
