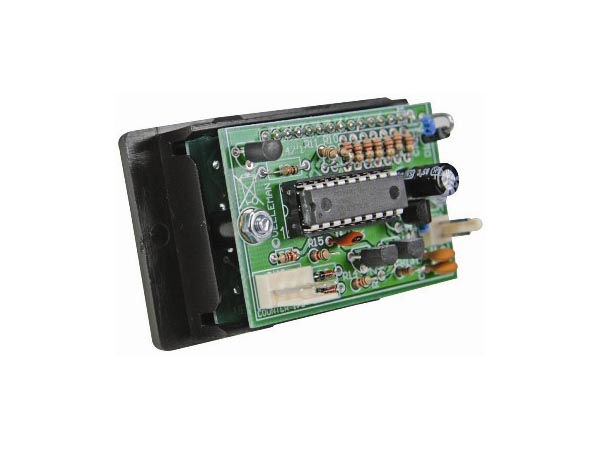

Very practical for counting parts, people, & scorekeeping. Red LED read-out. 2 inputs: counts up or down. Counting through external pulses or push buttons.
Memory function constantly compares the current value with a preset value and activates an output for as long as both are equal or for an adjustable time. Debounce function for stable operation (with low counting frequencies).Adjustable 'preset': 0000 to 9999. Comes with board-to-wire connectors (20cm wire).
Max. counting speed: 400 / sec. (10 / sec. with debounce delay). Max. count: 4 digits (0000 to 9999). Output pulse length: 100 to 900ms or 'as long as equal'.
Power Supply: 9 to 12VDC (unregulated). Power Consumption: < 50mA.
Dimensions: Panel module: 67 x 40.5 mm / 2.63 x 1.6". Cut-out: 54 x 37 mm / 2.12 x 1.45". Mounting depth: 42mm / 1.65".
