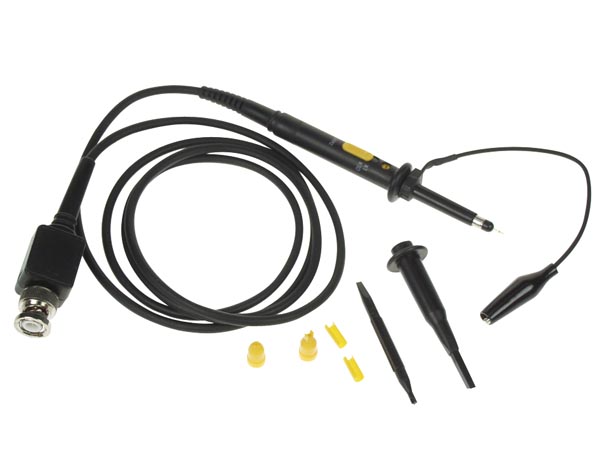

OSCILLOSCOPE PROBE 250MHz

  • PRODUCT NAME:

  • OSCILLOSCOPE PROBE 250MHz

  • ART NO:

  • PROBE250

  • Description:

  • Features:
    • Complete probe set, for measurements up to 250MHz.
    • Attenuation: 1:1 or 1:10
    • Safety: conform to IEC-1010 cat II
    Specifications:
    • Position x1:
      • Attenuation: 1:1
      • Bandwidth: DC to 10MHz
      • Rise time: 35ns
      • Input resistance: 1Mohm (input resistance scope)
      • Input capacitance: cap. scope 46pF
      • Working voltage: 600Vdc incl. peak AC derating with frequency.
      • Position REF: tip disconnected, scope input at the ground.
    • Position x10:
      • Attenuation: 1:10
      • Bandwidth: DC to 250MHz
      • Rise time: 1.4ns
      • Input resistance: 10Mohm (if scope input = 1Mohm)
      • Input capacitance: ± 11pF
      • Working voltage: 600Vdc incl. peak AC derating with frequency.
      • Compensation range: 10 to 35pF
    • Cable length: 1.2m
