Are you looking for a multifunction cable tester for RJ11 RJ45 BNC USB cable? NOYAFA NF-868(one remote) or NF-868W (8 remotes) is your option. You will never be tired of losing or breaking all the adapters needed for testing the various voice, data, and video media types. NF-868 series makes these awkward adapters things of the past with built-in RJ11, RJ45, coax and USB support. Both the main unit and the far-end identifiers can be used to test telephone, network, coax, USB cables.
Specifications:

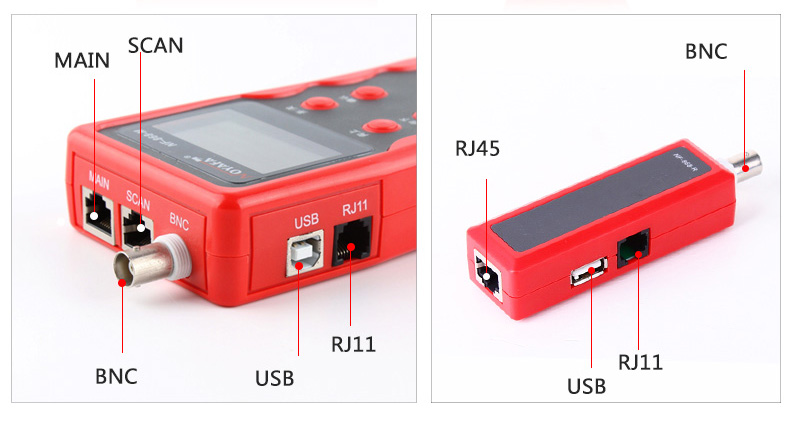

4 cables types: RJ11 RJ45 BNC USB Cable, without any awkward adaptors

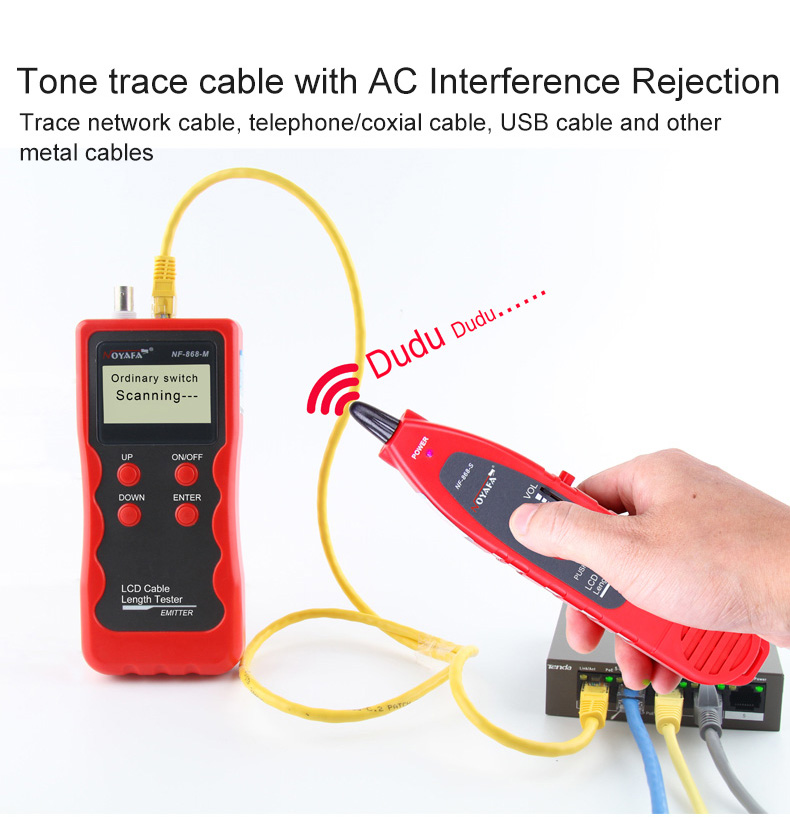

To quickly find the target wire or cable among kinds of wires with an AC filter.
Capable to measure length accurately for the 4 kinds of cables.
Test open, short, cross, reverse, broken wire positioning.
8 remote identifiers enable users to test 8 cables at one time.

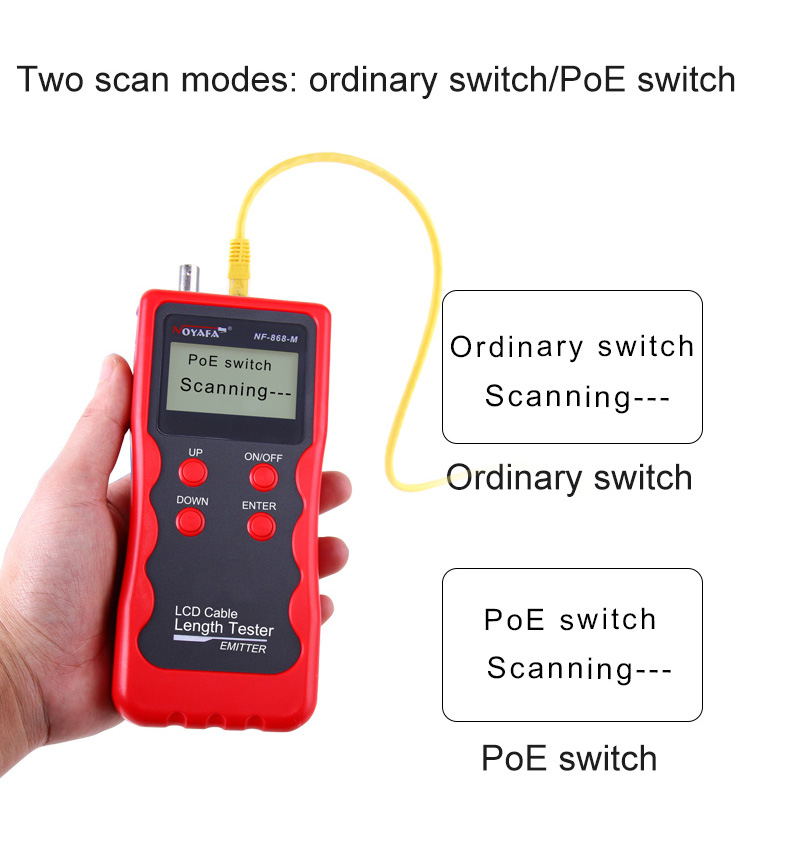

Two scan modes: ordinary switch / PoE switch
NF-868W Transmitter specification
Indictor:LCD 53x25 mm, with back light
Tone frequency:130kHz
Max. working current:Less than 70mA
Tone mode:2 Tones adjustable
Compatible connectors:RJ11,RJ45,USB,BNC
Max. signal voltage：15Vp-p
Battery Type：DC9.0V x 1pcs
Dimension(LxWxD)：185x80x32mm
NF-868W Receiver specification
Frequency：130kHz
Max. working current: Less than 70mA
Battery Type：DC9.0V x 1pcs
Dimension(LxWxD)：218x46x29 mm
NF-868W Remote unit specification
Compatible connectors:RJ11,RJ45,USB,BNC
remote identifiers：8pcs
Dimension(LxWxD)：107x30x24mm
