Noyafa NF-8601W-A Multi-Functional Network Cable Tester

  • PRODUCT NAME:

  • Noyafa NF-8601W-A Multi-Functional Network Cable Tester

  • ART NO:

  • NF-8601W

  • Description:

  • Features:
    • 1. PoE function: identify which pins are providing power and detect how much voltage.
    • 2. PING function to test network performance, a data packet, min & max time.
    • 3. Tone trace cable with complete AC Interference Rejection.
    • 4. Hub blink for locating network port by the flashing port light on Hub / Switch.
    • 5. TF function to import and export data from the computer (160 sets, text format).

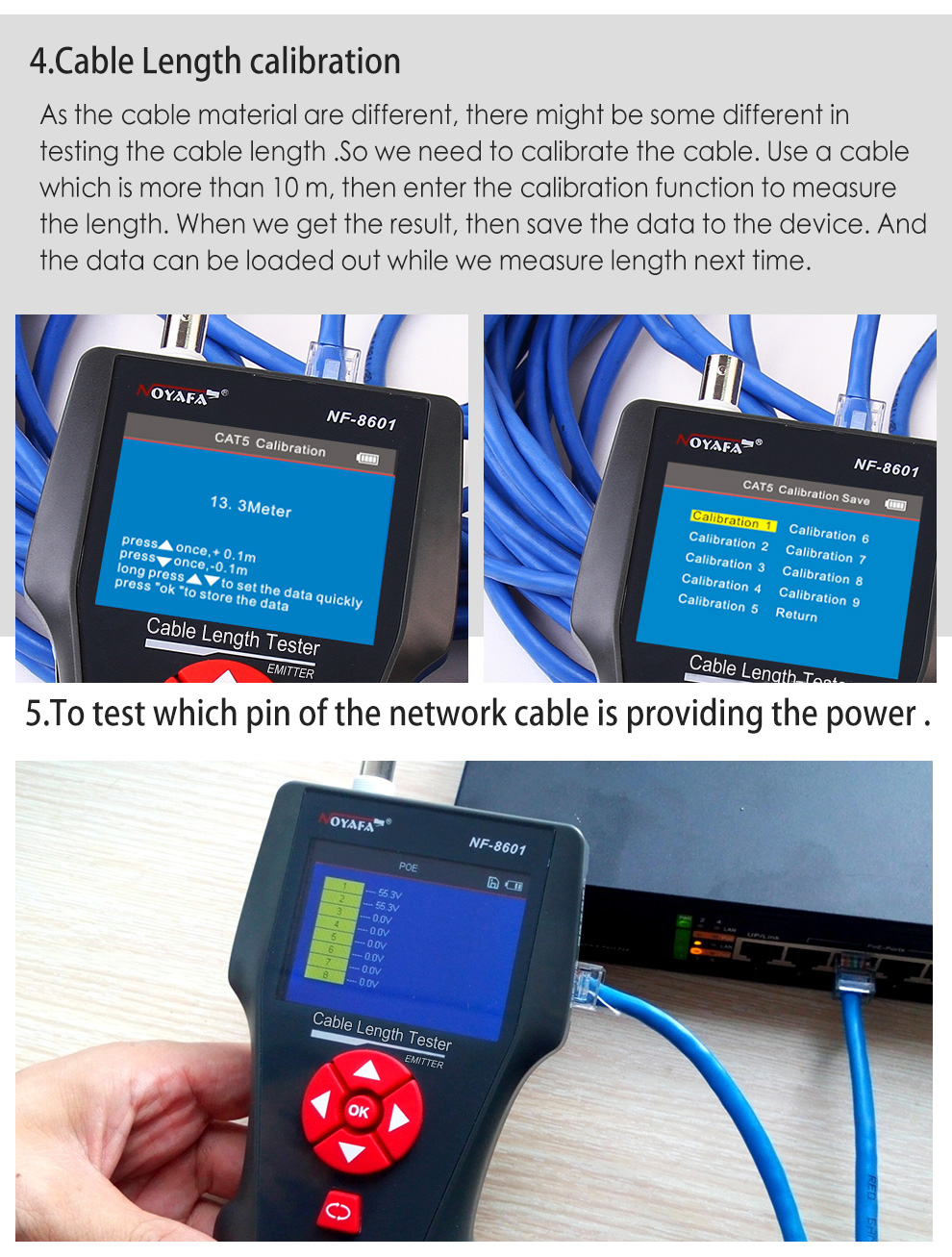

    • 6. Measure the length of network cable, coaxial cable, telephone cable.
    • 7. Capable to test open, short, & cross connection.
    • 8. Two-tone tracing modes: common switch & PoE Switch.

    Description:
    Style: NF-8601W with 8 remotes
    NOYAFA NF-8601W is a multifunction ethernet tester, integrated cable tracking, length measurement, continuity testing. Also PoE voltage testing, PING function. The tone probe can be used as a Voltage Detector. All the sets are with built-in rechargeable Lithium batteries. It meets most of the needs in Cabling installation and is a practical tool for technical man.

    NF-8601W Transmitter specification LCD screen:
    60 x 45mmTone frequency: 130kHzThe range of testing cable : ＜2000mAC filter: Yes Tone mode: 2 Tones, adjustable & compatible with connectors: RJ11, RJ45, BNC, PING/PoE Battery type: built-in Lithium battery Dimensions (LxWxD): 185 x 80 x 32mm

    NF-8601W Receiver specificationFrequency:
    130kHzThe Max. working current: ＜70mA Earphone jack: 1 LED illumination: 2 LEDs Battery type: built-in Lithium battery Dimensions (LxWxD): 218 x 46 x 29mm

    NF-8601W Remote unit specification:
    Compatible with connectors: RJ11, RJ45, BNC Dimensions (LxWxD): 107 x 30 x 24mm Remote units: 8pcs Accessories Included: Charing adaptor x 1set Telephone line adapter x 1 setNetwork cable adapter x 1 set Cable clips x 1 set User manual x 1 set Carry bag x 1 set Gift box x 1 set.
