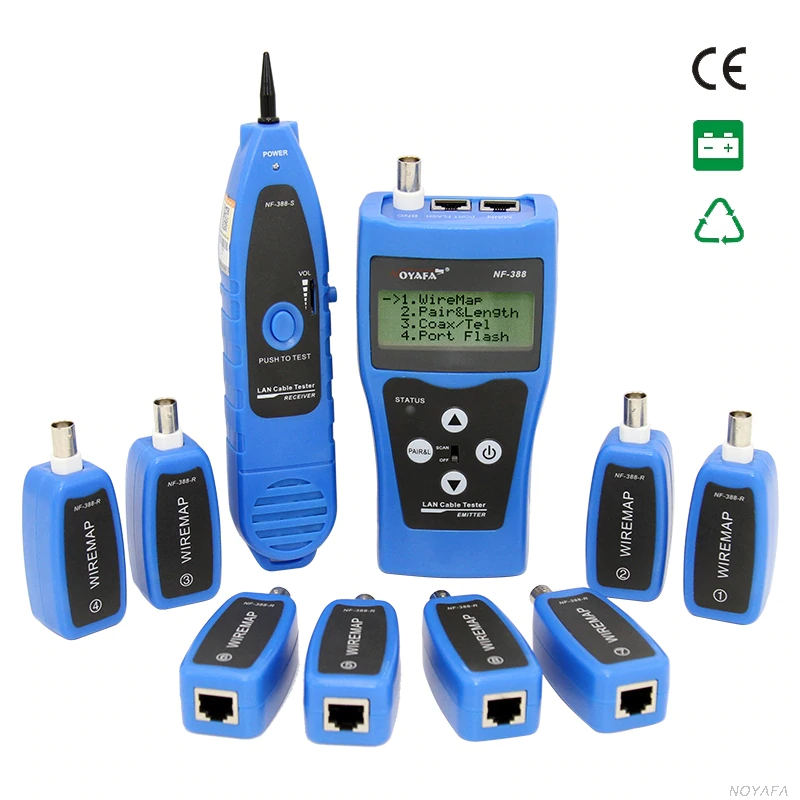

Noyafa NF-388-B Multipurpose Network Cable Tester Tracker Tracer Test Ethernet

  • PRODUCT NAME:

  • Noyafa NF-388-B Multipurpose Network Cable Tester Tracker Tracer Test Ethernet

  • ART NO:

  • NF-388

  • Description:

  • NF-388 is a practical cable Test & inspection instrument with lots of new functions researched and developed by Noyafa. It highlights for its two scan modes, Tone tracking & port flashing. It includes 8 remotes, which brings high work efficiency. Thus, it becomes an available tool for technicians in the installation and maintenance of the weak current system. It is widely applicable to a telephone system, computer network and other fields.

    Features:
    • Directly hunt 5E, 6E, telephone wire, coaxial cable, USB cable and other cables
    • Hub blink for locating network port by the flashing port light on hub/ switch
    • Check wiring error in 5E, 6E, coaxial cable, such as open, short, cross, etc.
    • Measure cable length and determine the distance of a broken point.
    • Testing polarity and voltage.
    • 8 remote identifiers help to test 8 cables at one time.
    • Memory for calibration data storage.
    Specifications:
    NF-388 Transmitter specification:
    Tone frequency: 455kHz
    Max. distance of transmission: 2km
    Max. distance of cable map: 300m
    Max. working current: 70 mA
    Tone mode: 2 Tones adjustable
    Compatible connectors: RJ11，RJ45,BNC, USB
    Max. signal voltage: 15Vp-p
    Function and faults LCD display：LCD display (wiremap, Tone, short,No adapter, Low battery)
    Cable map indication: LCD (#1-#8)
    Shielded indication: LCD ( #G)
    Battery Type: DC9.0V x 1pcs
    Dimension(LxWxD): 185x80x32mm

    NF-388 Receiver Specification:
    Frequency: 455kHz
    Max. working current: 70mA
    Battery Type:DC9.0V x 1pcs.
    Dimension(LxWxD): 218x46x29 mm.

    NF-388 Remote unit specification:
    Compatible connectors: RJ45,BNC
    Remote identifier: 8pcs.
    Dimension(LxWxD): 107x30x24mm.
