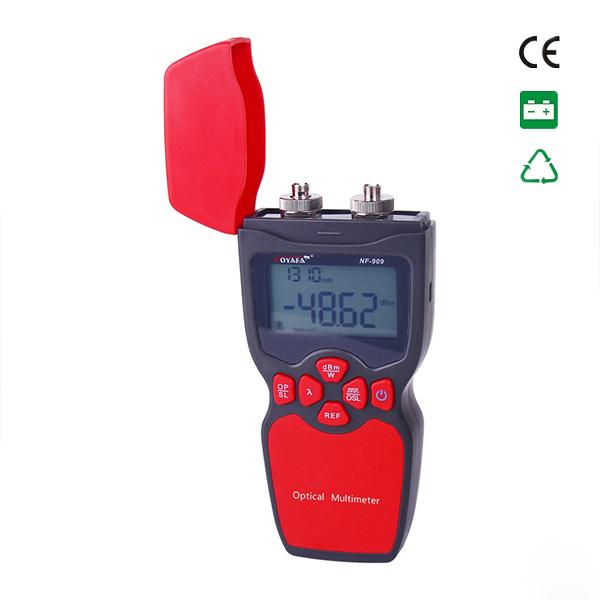

NF-909 2-in-1 Optical Multimeter

  • PRODUCT NAME:

  • NF-909 2-in-1 Optical Multimeter

  • ART NO:

  • NF-909

  • Description:

  • Features:

    1. Measurement of the power of an optical sender (dbm and w)
    2. Insertion loss test of optical devices.
    3. Light source function.
    4. FC, SC, ST, LC switchable (One style supplied with unit order others separately.)
    5. Wavelength: 850/1300/1310/1490/1550/1625 nm (power meter)
    6. Wavelength: 1310/1550nm (light source).

    Description:
    The 2-in-1 optical multimeter NF-909 is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements with a built-in light source. It has features of ingenious appearance, a wide range of power measurement, high accuracy with high performance-to-price ratio.

    Technical indexes
    Optical Power Meter Module
    Detector Type: IngaAs
    Measurement Range(dBm): -50~+26
    Calibrated wavelengths(nm): 850, 1300, 1310, 1490, 1550, 1625 nm
    Resolution (dB): 0.01dBm
    Identification Frequency Range: 10Hz~60KHz
    Optical Connector：FC(SC,ST,LC connector can be optional)

    Optical Light Source Module:
    Emitter Type: FP-LD
    Wavelengths: 1310/1550 (other wavelengths can be customized)
    Ouput Power(dBm): -7dBm
    Output Stability: ±0.05dB/15mins; ±0.1dB/ 8hours
    Modulation Frequencies: 270Hz, 1KHz, 2KHz
    Optical Connector: FC(SC,ST,LC connector can be optional)

    General Specifications of Multi Meter:
    Power Supply: 1.5V*3pcs
    Auto-off time: 15mins
    Operating Temperature(°C): -10~+60
    Dimension(mm): 160x75x32mm
    Weight (g): 400g

    Accessories:
    Optical fiber meter: x1pcs
    User manual: x1pcs
    1.5V battery: x3pcs
    Clean cotton swabs: x1bag
    Carrry bag: x1pcs
    Color box: x1pcs
