NF-907 2-in-1 Optical Multimeter

  • PRODUCT NAME:

  • NF-907 2-in-1 Optical Multimeter

  • ART NO:

  • NF-907

  • Description:

  • Features:
    1. Measurement of the power of an optical sender (dbm and w).
    2. Insertion loss test of optical devices.
    3. Check fiber breakage, & winding, etc.
    4. New ref user-defined.
    5. Fc/sc/st general-purpose interface (FC connector is included).
    6. Wavelength: 850/1300/1310/1490/1550/1625nm (power meter).
    7. Wavelength: 650Nm (visual fault locator).

    Description:
    The 2-in-1 optical multimeter NF-907 is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for optical fiber winding or breakage. It has features of ingenious appearance, a wide range of power measurement, high accuracy with high performance-to-price ratio.

    Technical indexes:
    Optical Power Meter Module
    Detector Type: IngaAs
    Measurement Range(dBm): -50~+26
    Calibrated wavelengths(nm): 850, 1300, 1310, 1490, 1550, 1625nm
    Resolution (dB): 0.01dBm
    Identification Frequency Range: 10Hz~60KHz
    Optical Connector：FC(SC,ST,LC connector can be optional)

    Visual Fault Locator:
    Emitting Energy: 20mw
    Standard wavelength: 650±10nm
    Operation Mode: Pulsed (2Hz) and CW
    Connector: 2.5mm Universal connector

    General Specifications of Multi Meter:
    Power Supply: 1.5V*3pcs
    Auto-off time: 15mins
    Operating Temperature(°C): -10~+60
    Dimension(mm): 160x75x32mm
    Weight (g): 400g

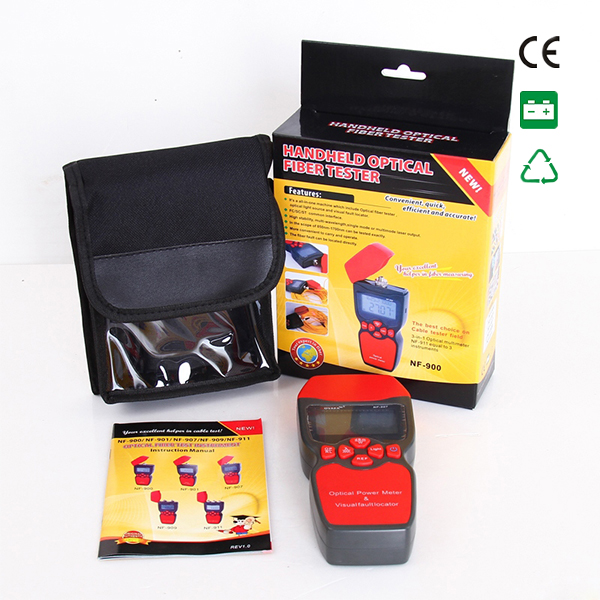

    Accessories
    Optical Fiber Meter: x1pcs
    User Manual: x1pcs
    1.5V battery: x1pcs
    Clean Cotton Swabs:  x1bag
    Carrry Bag: x1pcs
    Color Box: x1pcs
