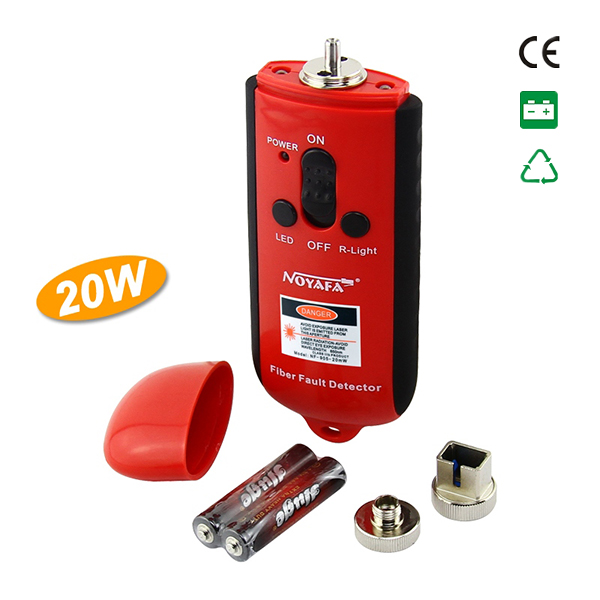

NF-905 Fiber Fault Locator

  • PRODUCT NAME:

  • NF-905 Fiber Fault Locator

  • ART NO:

  • NF-905

  • Description:

  • Features:
    1. Locating the fault of fiber breakage, winding and so on.
    2. End-to-end fiber recognition and the optimization of the machine connection point.
    3. Continuous or pulse working modes interchangeably.
    4. The LED light helps to work in the dark.

    Description:
    Operating mode: CW and glint.
    FC, SC, ST, general interface.
    Long inspection distance.
    Steady power output.
    Sturdy and durable shell function.
    Locate the fiber failure, such as fracture and bend.
    Failure inspection in OTDR blind zone.
    Fiber recognition from head face to the end face.
    Mechanical transition point optimization.

    Application: Telecom, CATV project - PDS construction and maintenance - optical component manufacture and research - other fiber projects technical.


    Model
     NF-905
    Wavelenth (nm)
     650±10nm
    Fiber Type
    SM/MM
    Connector
    2.5mm Universal
    Emmiting Energy
    5mW/10mW/20mW
    Working temp
     -20 ~ +60 ℃ （no dew)
    Storage Temp
     -40 ~ +85 ℃
    Power Supply
    1.5V AAA battery
    FC interface
    1pc (Bundled)
    SC/ST interface
    1pc (Optical)
    User Manual
    1pc
    Case
    1pc
    Color box
    1pc

    Accessories:
    FC interface: x1pcs (Bundled)
    SC/ST interface optional:  x1pcs
    User Manual: x1pcs
    Case Bag: x1pcs
    Color Box: x1pcs
    1.5V battery: x2pcs
Quantity
