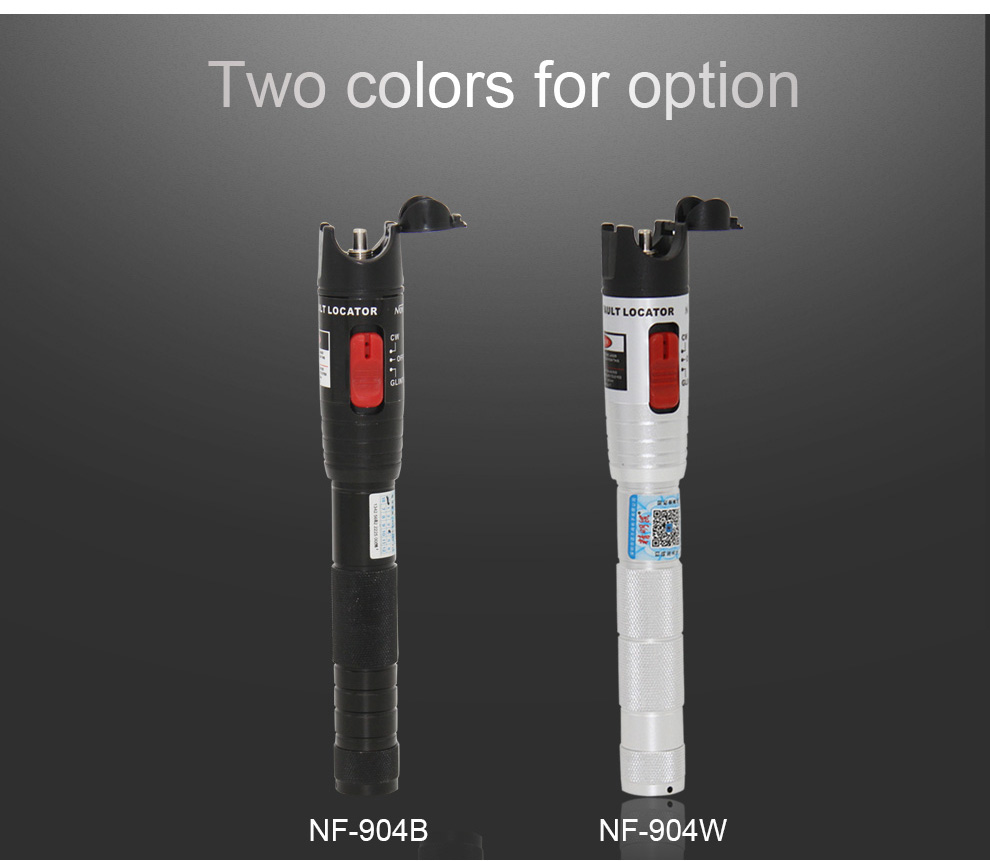

NF-904 10MW Visual Fault Locator

  • PRODUCT NAME:

  • NF-904 10MW Visual Fault Locator

  • ART NO:

  • NF-904 10MW

  • Description:

  • Features:
    1. Easy and accurate identification - it can easily and accurately detect and locate fiber breaks, poor connections, bending or cracking.
    2. The detector will emit a 650nm bright light for fiber tracing, breaks or faults in the fiber will refract the light.
    3. The detector will emit a bright red light for fiber tracing, breaks or faults in the fiber will refract the light, creating a bright glow around the faulty area.

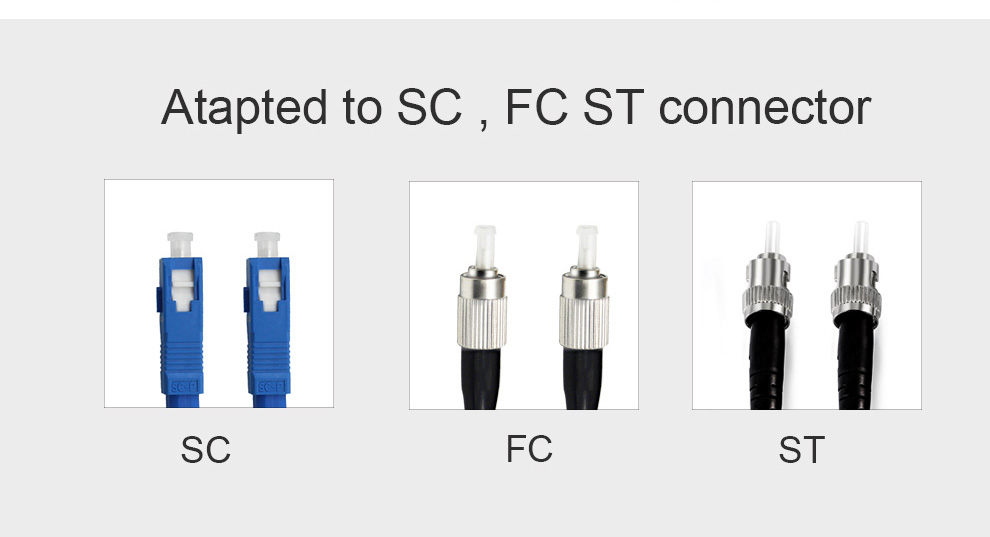

    4. Test for both single-mode and multi-mode cables with optional 2.5mm fiber optic(standard) connectors.
    5. Crash-proof and dust-proof design for laser head. It is designed with durable head to prevent crash and dust, and the case ground design prevents damage efficiently.

    Descriptions:
    1. Aluminium alloy body, durable for long time use.
    2. The built-in ceramic insert of low loss and it is replaceable.
    3. Pen type design and lightweight, & easy to carry.

    Model
     NF-904W
    Wavelength (nm)
     650±10nm
    Fiber Type
    SM/MM
    Connector
    2.5mm Universal
    Output Power
    1mW/5mW/10mW/20mW
    Working Temp
     -20 ~ +60 ℃ （no dew)
    Storage Temp
     -40 ~ +70 ℃
    Power Supply
    1.5V AAA battery
    FC Interface
    1pc (Bundled)
    User Manual
    1pc
    Case
    1pc
    Color Box
    1pc

    Accessories:
    User Manual: x1pcs
    Case Bag: x1pcs
    Color Box: x1pcs
    1.5V Battery: x2pcs
