LC to LC DX SM Fiber Optic Patch Cables

  • PRODUCT NAME:

  • LC to LC DX SM Fiber Optic Patch Cables

  • ART NO:

  • P02LL930L

  • Description:

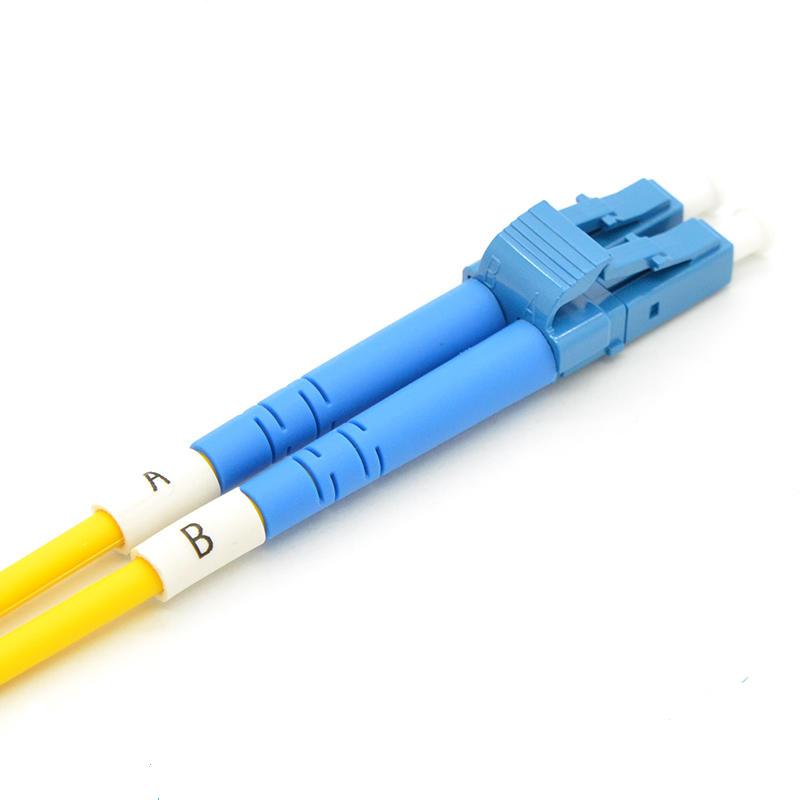

  • Fiber Optic Patch Cable, LC to LC, Single-Mode 9/125, Duplex
    • These high-speed single-mode 9/125um duplex fiber optic patch cables are terminated with LC fiber optic connectors on both ends (LC-LC). Called Lucent Connectors, Little Connectors or Local Connectors, these snap-in connectors are typically used for high-density connections and are compatible with plug-and-play devices such as SFP modules and XFP transceivers.
    Specifications:
    Parameters
    LC/PC
    LC/UPC
    LC/APC
    Working Temperature (°C)
    -40 — +80
    Insertion Loss (dB)
    ≤0.2
    ≤0.2
    ≤0.2
    Return Loss( dB)
    ≥45
    ≥50
    ≥60
    Tensile strength(N)
    ≥55
    ≥55
    ≥55
    Durability(Times)
    Exert a force of 1N for 1 hour at a distance
    of 0.5meterfrom the rear of the connector.

    Apply To: Use in Gigabit Ethernet and Fiber Channel applications, Ideal solution for data applications requiring high-speed data transmission, Broadband systems, Telecommunication/Data communication, Fiber Connections in Patch Panels, Hubs, Switches, Routers.

    Feature:
    1. Low insertion loss, high return loss
    2. Snap-in connectors for easy installation
    3. Small form factor LC connectors—ideal for high-density installations
    4. Available fiber cable diameters: Φ0.9, Φ1.8, Φ2.0, Φ2.8, Φ3.0mm
    5. Simplex, duplex or multi-fiber are available
    6. Connector Types: LC, FC, SC, ST, MU, MTRJ, MPO, E2000
    7. Fiber cores: Simplex, Duplex, 4 fibers, 6 fibers, 8 fibers, 12 fibers,
        24fibers, 48fibers, etc
    8. Fiber Mode: Singlemode (G.652), Multimode
        (OM1/OM2/OM3/OM4/OM5)
    9. Connectors Materials Flammability Rating: UL94-V0
    10. Cables are fire retardant according to IEC Standard 60332-1
    11. Produced and tested according to GR-326-CORE & TIA-568-C.3 Standards
