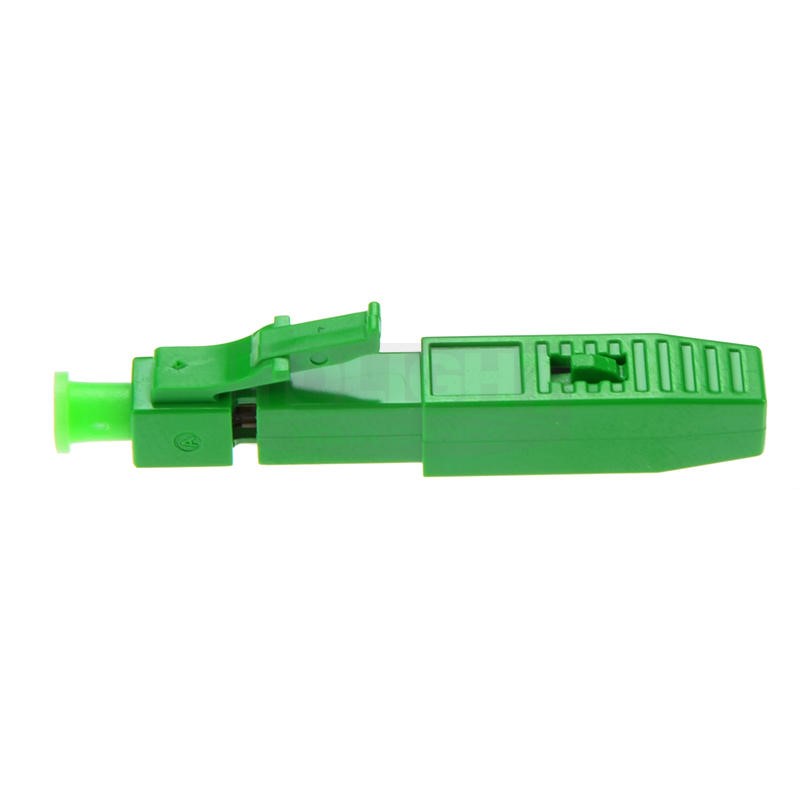

LC/APC Pre-polished Ferrule Field Assembly Connector - Fast Connector.
The LC/APC fast connector are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fibre alignment, a factory pre-cleaved fibre stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fibres. The Field Assembly Connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and with the expansion of FTTH, is already proving itself to be the connector of choice by incumbents, municipalities, utilities & alternative carriers. Our Field Assembly Optical Connector series are now available in SC, LC, or FC variants, catering for 250um to 900um, and 2.0mm, 3.0mm diameter single-mode and multimode fibre types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with SPC or APC ferrules.
Specification:
|
Product Name
|
LC/APC Fiber Optic Fast Connector
|
|
Ferrule
|
Ceramic
|
Polishing
|
APC
|
|
Cable Diameter
|
0.9mm
|
Fibre Mode
|
SM
|
|
Insertion Loss
|
≤0.35dB
|
Return Loss
|
＞50dB
|
|
Operating Temperature
|
-40~85°C
|
Tensile Strength
|
＞5N
|
|
Housing Color
|
Green
|
Boot Color
|
Green
|
Apply To:
1. Fibre optic communication system and telecommunication networks.
2. Fibre optic data transmission.
3. CATV
4. Optical access network.
5. Fibre to the Subscriber (FTTx) applications.
6. Optical cable interconnection.
7. Maintenance or emergency restoration of fibre networks.
8. Repair and replacement requirements.
9. Fibre optic equipment.
