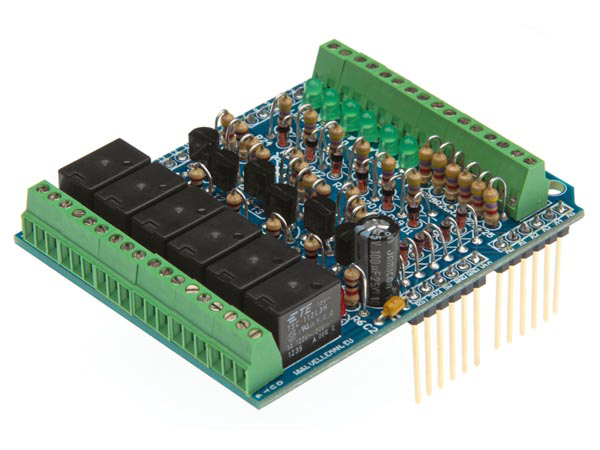

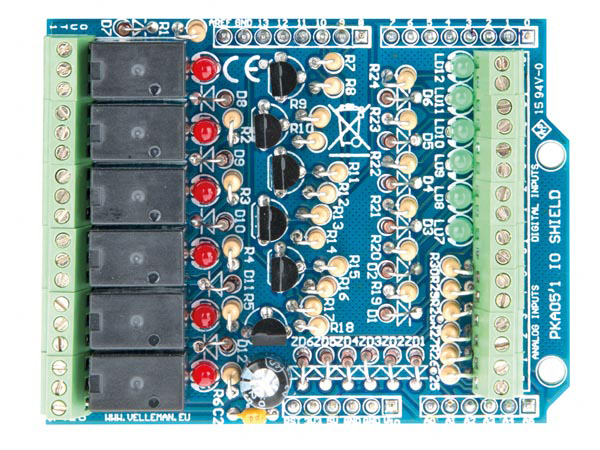

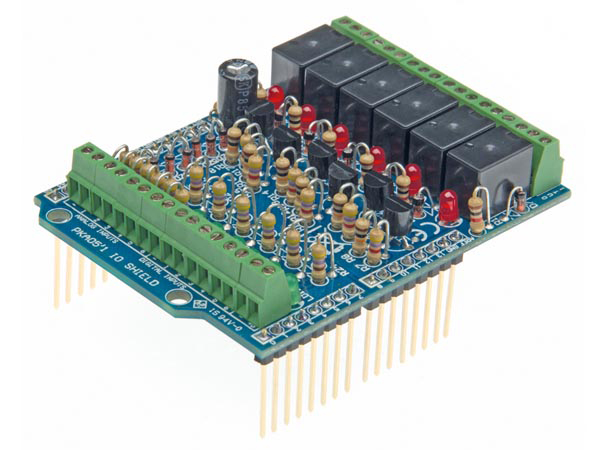

I/O SHIELD FOR ARDUINO®

  • PRODUCT NAME:

  • I/O SHIELD FOR ARDUINO®

  • ART NO:

  • KA05

  • Description:

  • General purpose INPUT - OUTPUT shield for Arduino®. Also available as completely mounted module VMA05: I/O SHIELD FOR ARDUINO®.

    Features:
    • 6 relay outputs: 0.5A max 30V (*)
    • 6 analogue inputs
    • 6 digital inputs
    • Downloadable sample sketch.

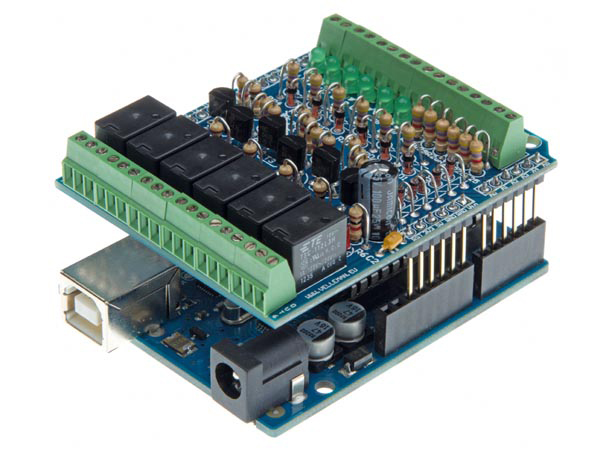

    • Stackable design: the shield can be stacked with other shields.
    • Large user community.
    • Requires 1 Arduino UNO™ (not included).
    Specifications:
    • 1 A (max.) load per output
    • 30 V max. per output
    • Uses pin 8 to 13 as outputs, pin A0 to A5 as analogue inputs, and pin 2 to 7 as digital inputs.
    • Dimensions: 68 x 53mm / 2.67 x 2.08"
    Extras:
    • (*) It is required to power the Arduino UNO (not supplied) with a 12V DC 500mA power supply (not supplied).
    • This shield will not work with the Arduino Yún. Use the KA08 or VMA08 with the Arduino Yún.
