HF-CHOKE 1µH

  • PRODUCT NAME:

  • HF-CHOKE 1µH

  • ART NO:

  • 1H0

  • Description:

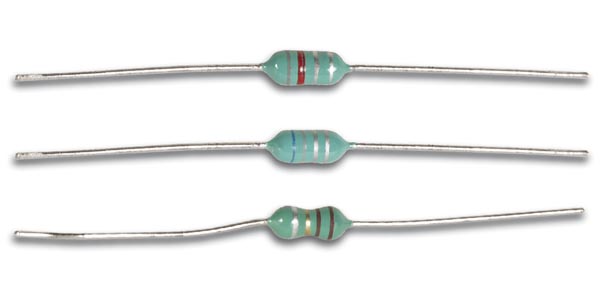

  • BC (bobbin core) chokes are HF chokes with a copper-wire winding on a special ferrite drum core. The plastic sleeve is flame-retardant. Colour coding is achieved by using rings in accordance with IEC publication 62. The chokes are available on one-piece tapes (suitable for automatic assembly).
    Features:
    • Conformal coated inductors
    • Special magnetic core structure contributes to high Q and Self-Resonant Frequencies (S.R.F.)
    • Epoxy coated for better reliability
    • Wide inductance range
    • Ideal for auto insertion
    Specifications:
    • Inductance: 1.0µH
    • Tolerance : 10%
    • Rated current: 920mA
    • DC resistance: 0.09 ohm
    • S.R.F: 157MHz
    • Q min: 50
