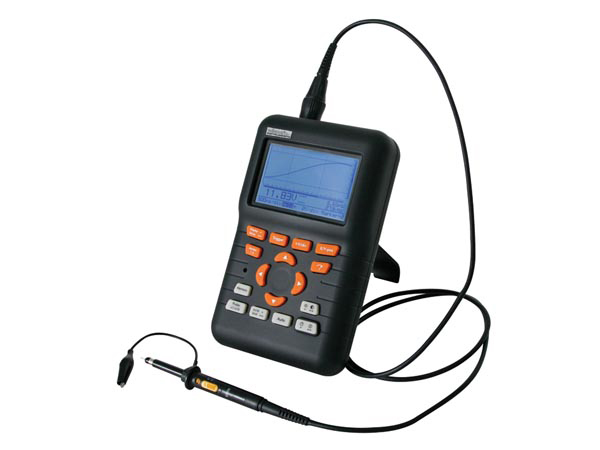

HANDHELD PERSONAL SCOPE WITH USB

  • PRODUCT NAME:

  • HANDHELD PERSONAL SCOPE WITH USB

  • ART NO:

  • HPS50

  • Description:

  • Designed By electronics enthusiasts For electronics enthusiasts! Powerful, compact and USB connectivity, this sums up the features of this oscilloscope.
    The large keyboard and bright LCD makes this unit a breeze to use, combine this with great specifications and you wonder how you ever managed without it!
    Features:
    • 40 MHz sampling rate. / 12 MHz analogue bandwidth / 0.1 mV sensitivity / 5mV to 20V/div in 12 steps / 50ns to 1 hour/div time base in 34 steps / Ultra fast full auto set up options. / Adjustable trigger level. / X and Y position signal shift.
    • DVM readout. / Audio, power calculation (RMS and peak). / dBm, dBV, DC, RMS Measurements / Signal markers for voltage and time.
    • Frequency readout (through markers). / Recorder function (roll mode). / Signal storage (2 memories) / High-resolution LCD 192x112 pixels.
    • LCD backlight / Galvanically separated USB output for PC. / Data or bitmap download to PC. / Different screen modes: normal screen view,  wide screen with DVM, normal screen with large DVM,  & widescreen with large DVM.
    • USB PC Connection real-time and screen capture.
