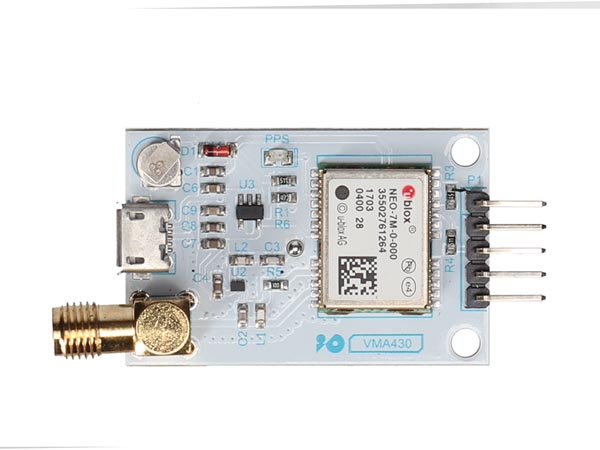

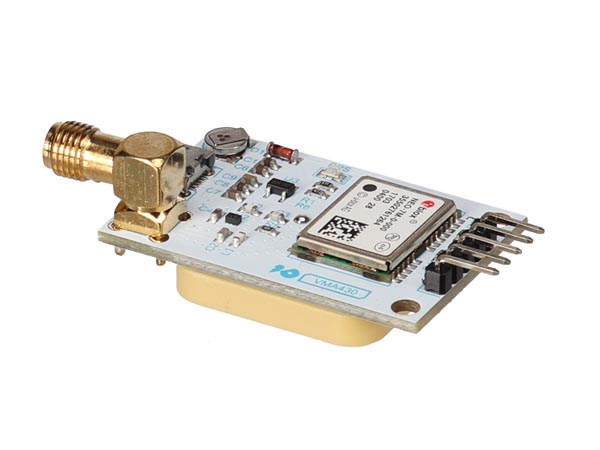

GPS MODULE U-BLOX NEO-7M FOR ARDUINO®

  • PRODUCT NAME:

  • GPS MODULE U-BLOX NEO-7M FOR ARDUINO®

  • ART NO:

  • VMA430

  • Description:

  • The NEO-7 series of standalone GNSS modules is built on
    the exceptional performance of the u-blox 7 GNSS (GPS,
    GLONASS, QZSS and SBAS) engine. The NEO-7 series delivers
    high sensitivity and minimal acquisition times in the industry
    proven NEO form factor.
    Features:
    • U-BLOX NEO-7M module, compact and excellent performance
    • Parameters can be set via serial port and saved in EEPROM
    • With SMA interface, you can connect a variety of antenna, strong adaptability
    • Compatible with 3.3 V / 5 V level for easy connection to a variety of microprocessor systems
    • Back-up rechargeable battery on board
    • With micro USB, no need for USB-TTL tools
    • With TTL interface
    • Onboard ceramic antenna
    • Sample code: https://playground.arduino.cc/UBlox/GPS
    • Evaluation software (U-Center) available for download
    Specifications:
    • Supply voltage: 3.3 to 5 VDC (or by USB cable)

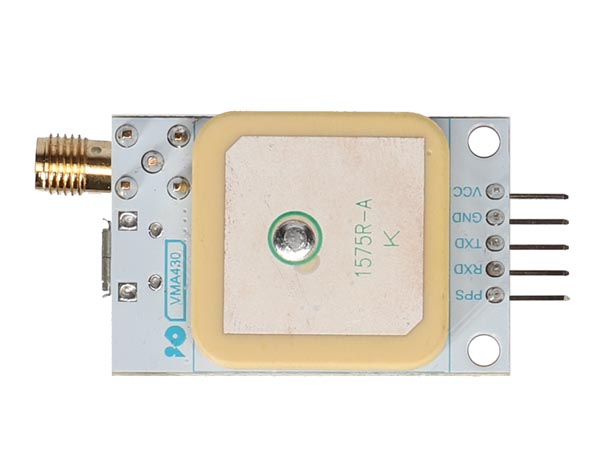

    • Connections: VCC (+5 V), GND (ground), TX, RX, PPS (time pulse)
    • Default baud rate: 9600 baud
    • Dimensions: 4 x 2.5 x 1.5 cm
    • Weight: 15 g
