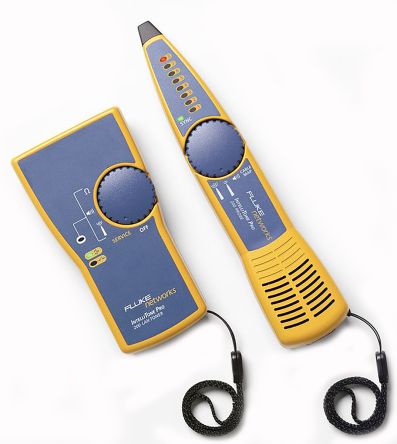

Cutting-edge tester technology provides advanced digital and analog cable location and high-resolution measurement, via the breakthrough solution that is IntelliTone™. This solution allows the most elusive, hidden or bundled voice/audio, data and video cables and wire pairs to be located and isolated quickly and reliably, even on active networks. All of this in one tool which has been designed for ease of use, featuring a thumbwheel switch, LED display and auto power down with a hard robust exterior.
The advantages are you can overcome noise, save hours of work time, whilst being able to locate cables efficiently and safely, eliminating the need for multiple testing.
Features and Benefits:
• Reject noise and false signals
• Locate the correct cable bundle
• Isolate a cable within the bundle, despite cable bleed
• Tests for continuity
• Identify and diagnose 10/100/1 Gb Ethernet link connectivity with NIC / hub indication
• Identify individual wire pairs with new SmartTone™ analog tuning
• Verification on twisted-pair installation with CableMap capability which identifies common cable miswire
Interface includes: Main Mod8 port for tone generation on all 4 pairs of UTP/STP cabling, F Connector for coaxial cabling, 2 x Banana jack plugs.
Specifications:
|
Attribute
|
Value
|
|
Cable Type
|
Coaxial
|
|
Test Type
|
Cable Continuity
|
|
Tone
|
Yes
|
|
Power Source
|
Battery
|
|
Battery Type
|
PP3
|
|
Battery Life
|
20 h
|
|
Dimensions
|
141 x 75 x 32 (Toner) mm, 222 x 48 x 32 (Probe) mm
|
|
Length
|
141 (Toner) mm, 222 (Probe) mm
|
|
Width
|
48 (Probe) mm, 75 (Toner) mm
|
|
Maximum Operating Temperature
|
+40°C
|
|
Minimum Operating Temperature
|
0°C
|
|
Height
|
32mm
|
