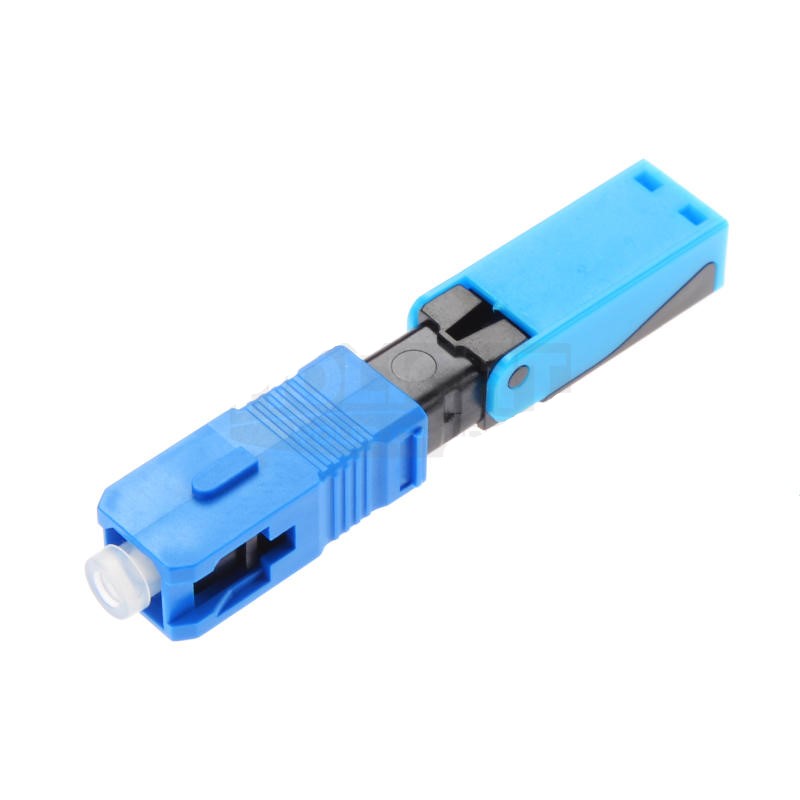

Fiber Optic Fast Connector SC/UPC

  • PRODUCT NAME:

  • Fiber Optic Fast Connector SC/UPC

  • ART NO:

  • C02GSS7BLF

  • Description:

  • SC/UPC Field Assembly Connector Fast/Quick Connector
    Field Assembly SC/PC fast connector for FTTH can provide a quick and easy termination of fibres in the field. Options are available for 900 microns allowing the installer to terminate and make a connection in minutes at equipment and fibre patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens and polishing and fibre interface inspection.

    Specification:
    Product Name
    SC/UPC Fiber Optic Fast Connector
    Cable Scope
    3.0*2mm Drop Cable
    Fiber Diameter
    125um(652D & 657)
    Coating Diameter
    250um
    Mode
    SM
    Insertion Loss
    ≤0.3dB
    Return Loss
    ＞45dB
    Operating Temperature
    -40~85°C
    Tensile Strength
    ＞5N
    Housing Color
    Blue
    Boot Color
    Black

    Apply To: Datacom telecom measurement equipment single-mode lasers ONU FTTH projects.

    Feature:
    1. Low insertion loss, 0.2dB, 0.3dB, customer optional.
    2. High return loss, 40dB, 45dB, 50dB, customer optional.
    3. Reliable with durability over 500 times mating.
    4. Low environmental sensitivity, adopt to complex environment.
