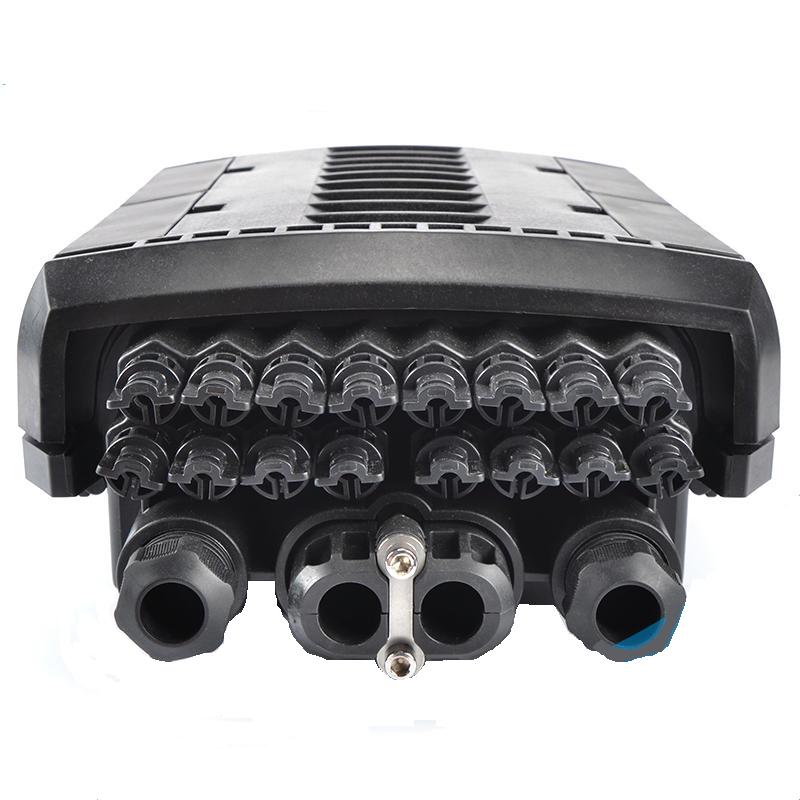

Fiber Access Terminal Closure for 16 Ports

  • PRODUCT NAME:

  • Fiber Access Terminal Closure for 16 Ports

  • ART NO:

  • FATC-0416

  • Description:

  • 16 Ports Outdoor Fiber Optic Splice Closure for FTTx
    • FATC-0416 fiber access termination closure is able to hold up to 16-24 subscribers and 48 splicing points as closure. It is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
    Model
    FATC-0416
    Dimension( L×W×H )
    385mm×245mm×130mm
    Application of Cable Diameter
    2*3mm FTTH Drop Cable, 2*5mm Figure 8 FTTH Drop Cable, 6mm cable (optional)
    Material
    Strengthen Polymer Plastic
    Max Splicing capacity(F)
    48 Fibers (4 Splice Trays)
    IP Protection Grade
    IP68
    Cable Entry without Cable Gland
    16x 4-7mm
    Adapter
    24pcs of SC Simplex
    Sealing Structure
    Mechanical Sealing
    Application Splitter
    1pc of 1*16 PLC Splitter or 2pcs of 1*8 PLC Splitters
    Net Weight/Gross Weight
    4KG/5KG

    Apply To: 1. Wall mounting and pole mounting installation; 2. FTTH pre-installation and filed installation; 3. 4-7mm cable ports suitable for 2x3mm indoor FTTH drop cable and outdoor figure 8 FTTH self-supporting drop cable.

    Feature:
    1. Water-proof design with IP-68 Protection level
    2. Integrated with flap-up splice cassette and adaptor holder
    3. Impact test: IK10, Pull Force: 100N, Full rugged design
    4. All stainless metal plate and anti-rusting bolts, nuts
    5. Fiber bend radius control more than 40mm
    6. Suitable for the fusion splice or mechanical splice
    7. 2 pcs of 1*8 Splitter can be installed as an option
    8. Mechanical sealing structure and mid-span cable entry
    9. 16 ports cable entrance for drop cable
    10. 24 adaptors for drop cable patching.
