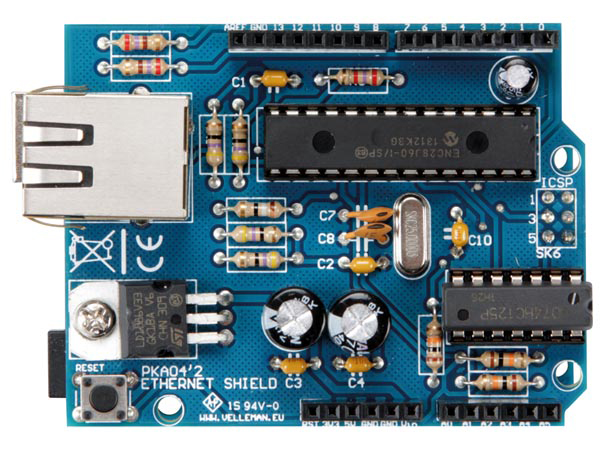

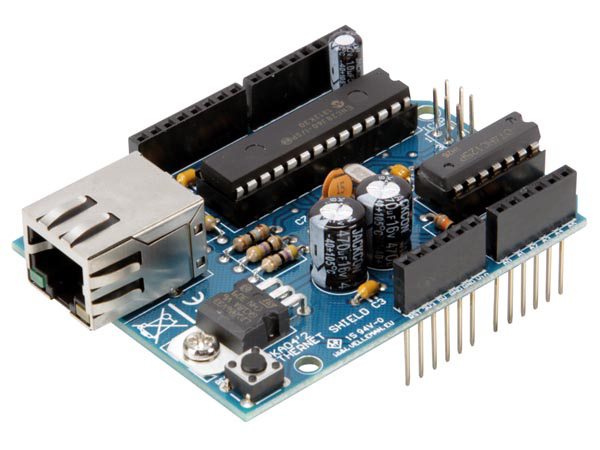

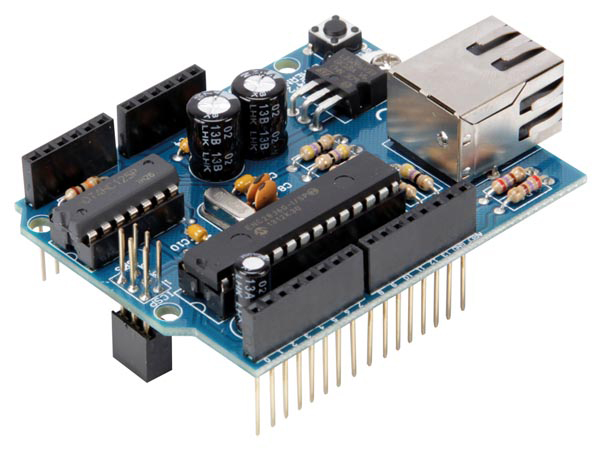

ETHERNET SHIELD FOR ARDUINO®

  • PRODUCT NAME:

  • ETHERNET SHIELD FOR ARDUINO®

  • ART NO:

  • KA04

  • Description:

  • Configure your Arduino as a simple web server or let it get data from the worldwide web. Also available as completely mounted module VMA04: ETHERNET SHIELD FOR ARDUINO®.
    Features:
    • Based on a Microchip ENC28J60 chip.
    • Downloadable sample sketches and library.

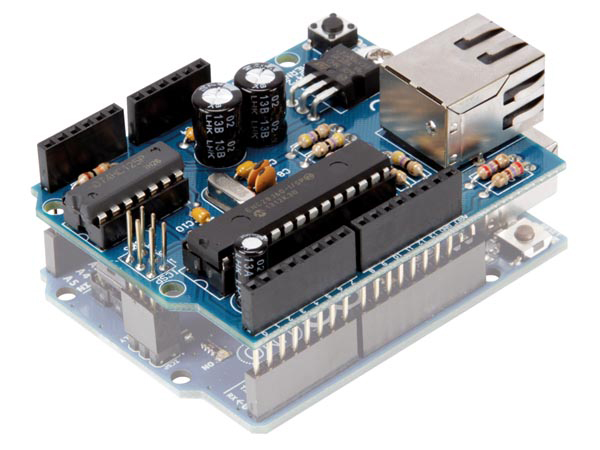

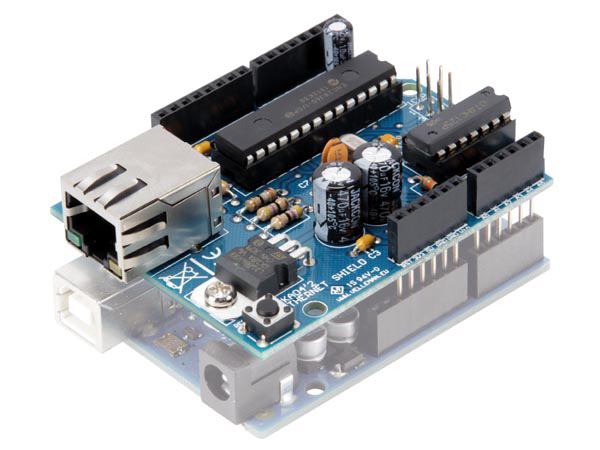

    • Stackable design: the shield can be stacked with other shields.
    • Large user community.
    • Requires 1 Arduino UNO™ (not included).
    Specifications:
    • Data rates up to 10 Mbps
    • Integrated MAC controller
    • 8 kB Transmit / Receive Packet Dual Port Buffer
    • The MAC controller supports both Unicast, Multicast and Broadcast packets, has a programmable (up to 64-byte) pattern matching feature within a packet at user-defined offset and programmable wake-up on multiple packet formats (Magic Packet, Unicast, Multicast, Broadcast, specific packet match or any packet).
    • Uses pin 10 and 2 on an Arduino UNO™ board. It also uses the ICSP connector as a serial connection to the shield to free up I/O pins.
    • Dimensions: 68 x 53mm / 2.67 x 2.08"
