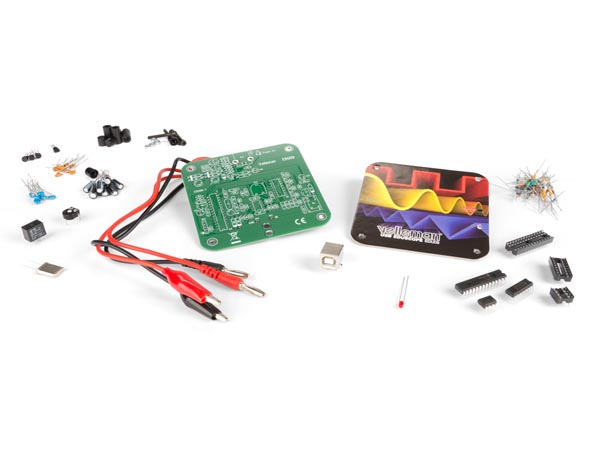

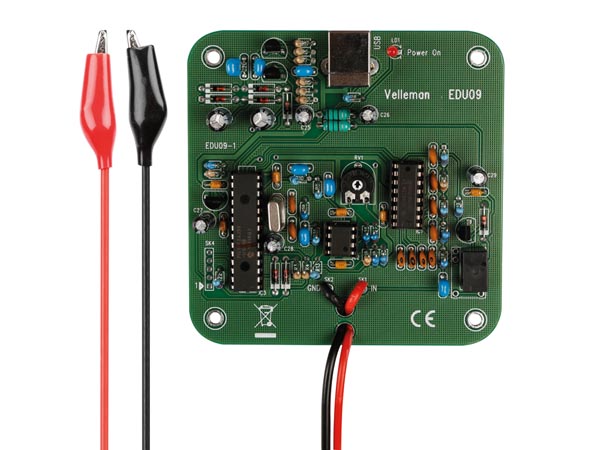

EDUCATIONAL PC OSCILLOSCOPE KIT

  • PRODUCT NAME:

  • EDUCATIONAL PC OSCILLOSCOPE KIT

  • ART NO:

  • EDU09

  • Description:

  • Specifications:
    • Oscilloscope: bandwidth: DC to 200 kHz ± 3 dB, input impedance: 100 kohm / 20 pF, maximum input voltage: 30 V (AC + DC), time base: 10 µs to 500 ms per division, input range: 100 mV to 5 V/division, input sensitivity: 3 mV display resolution. Readouts: True RMS, dBV, dBm, p to p, Duty cycle, Frequency, record length: 1k samples, sampling frequency: 62.5 Hz to 1.5 MHz, sample history function, auto set-up function, pre-trigger function : on 0.1 ms/div .. 500 ms/div ranges, persistence options: Colour graded, Variable and Infinite.
    • Spectrum Analyser: frequency range: 0 .. 150 Hz to 75 kHz, operating principle: FFT (Fast Fourier Transform), FFT resolution: 512 lines
    • Transient Recorder: timescale: 20 ms/div to 2000 s/div, max. recording time: 9.4 h/screen, automatic storage of data, record and display of screens, automatic recording for more than 1 year, max. number of samples: 100/s, min. number of samples: 1 sample/20 s
