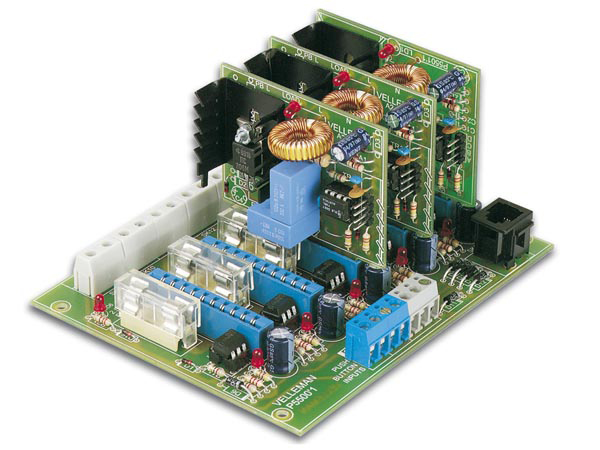

Create your own domestic modular light control system. For use with optional plug-in module K8007 / K8037, plug-in timer module K8008 or plug-in slow-on/slow-off module K8029. Bus system holds up to five plug-in units. Optically insulated push button inputs. Can be controlled with open collector circuits (ex. K8000/K8055/K8061 computer interface card, with IR remote control receiver K8050 or with K8023: 10-CHANNEL, 2-WIRE REMOTE CONTROL ). Local control pushbuttons included. LED power and mains indicator. LED operation indicator for each channel. Low-voltage (24VAC) control circuit for extra safety. Each plug-in slot is fused. Includes 10 LEDs for pushbutton illumination.
Specifications:
5 separated channels. Maximum output: 2.5A per channel (fuse protected). Push button control current: 150mA
Open collector control current: 35mA DC. Power Supply: 24VAC / 300mA
Supply Voltage for modules: 110V to 240VAC. Dimensions: 107 x 160 x 70mm / 4.2 x 6.3 x 2.8"
