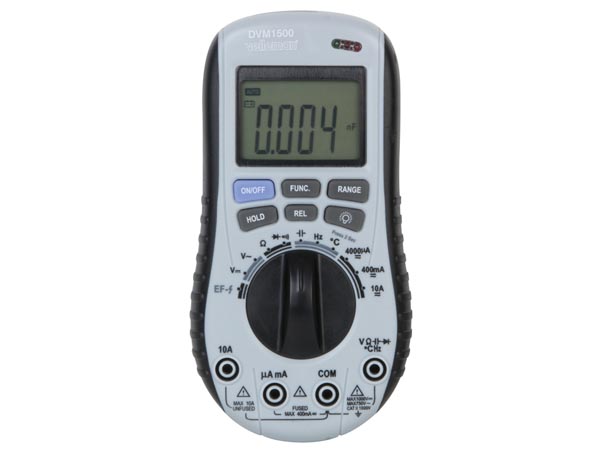

DIGITAL AUTORANGE MULTIMETER + NO CONTACT AC VOLTAGE DETECTOR

  • PRODUCT NAME:

  • DIGITAL AUTORANGE MULTIMETER + NO CONTACT AC VOLTAGE DETECTOR

  • ART NO:

  • DVM1500

  • Description:

  • Features:
    • 4000 counts LCD with automatic polarity indication and settings information.
    • No contact AC voltage detector (sensitivity > 50 Vac, 50 Hz; distance < 15 cm)
    • Alarm function for improper connection of test leads.
    • White backlight.
    • Relative measurement mode for all ranges except frequency, EF and diode test.
    • Auto range or manual range.
    • Data-hold function.
    • Auto power-off (except for EF range).
    • Diode and continuity test.
    • Voltage measurements: 750 Vac and 1000 Vdc max.
    • Adc and Aac current measurements: max. 10 A
    • Resistance measurements: max. 40 Mohms
    • Temperature measurements: -55 °C to +1000 °C
    • Capacitance measurement: up to 200 µF
    • Frequency measurement: 10 Hz to 200 kHz
    • Fuse protection: 500 mA 250 V
    • K-type thermocouple measuring range: -20 °C to 1000 °C
    • In accordance with IEC1010 CAT II 1000 V, CAT III 600 V
    • Fireproof ABS case
    • Remark: it takes a few seconds before the meter shows the result. This is normal. Depending on the value of the capacitor, the result will be displayed after 5 to 30 seconds.
    • Important safety information
