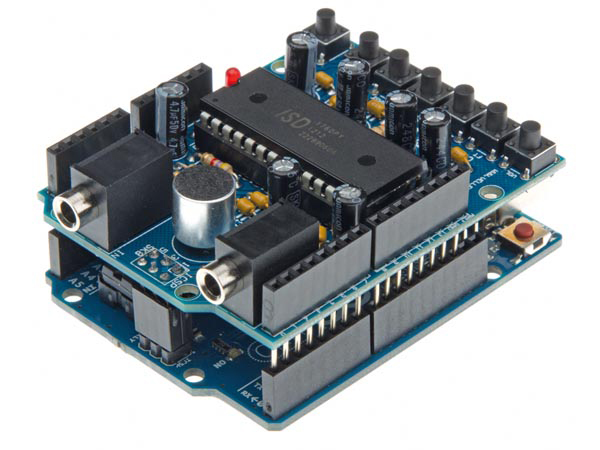

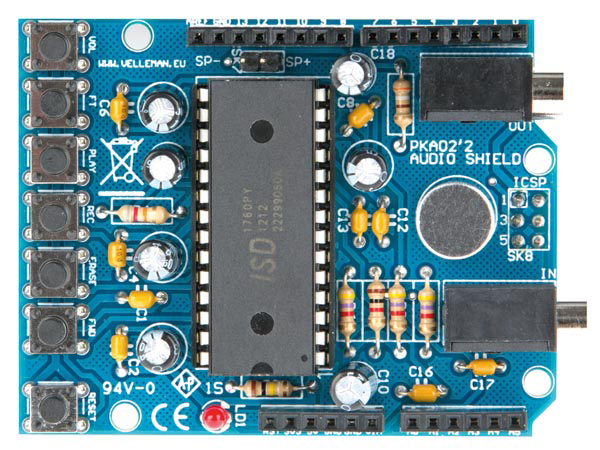

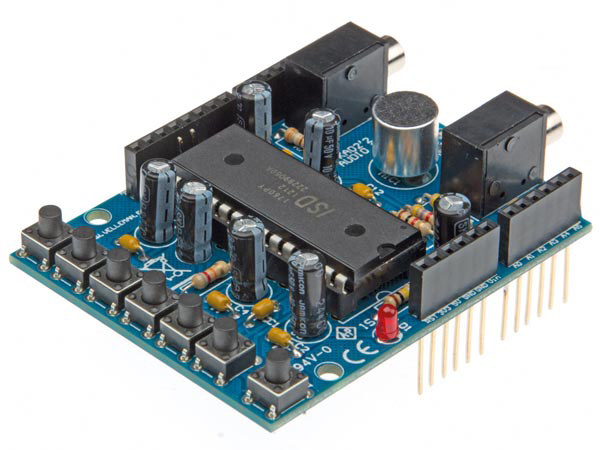

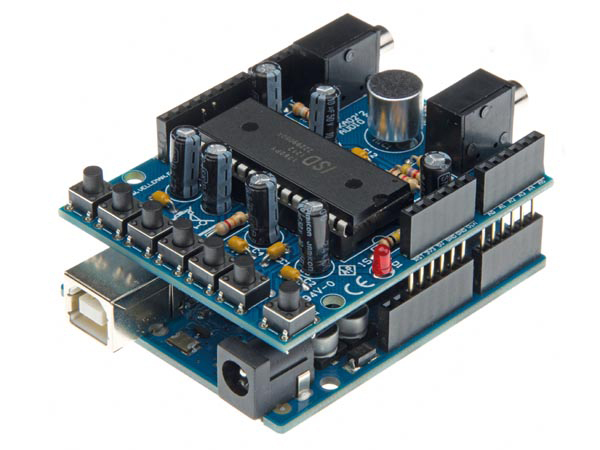

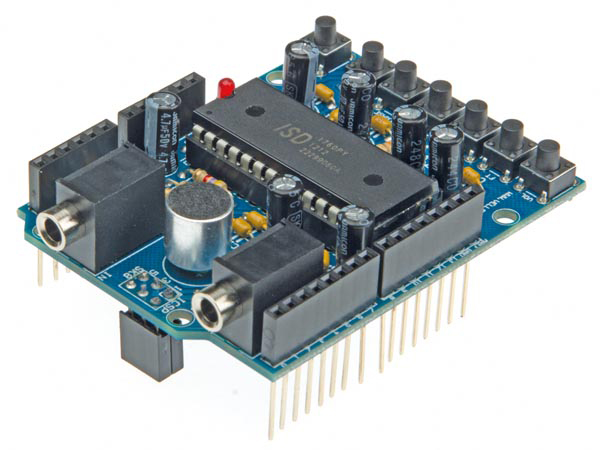

AUDIO SHIELD FOR ARDUINO®

  • PRODUCT NAME:

  • AUDIO SHIELD FOR ARDUINO®

  • ART NO:

  • KA02

  • Description:

  • Record your voice via a built-in microphone or a line input. Also available as completely mounted module VMA02: AUDIO SHIELD FOR ARDUINO®
    Features:
    • 60 second recording time.
    • Start playback and record via onboard buttons or via Arduino® UNO.
    • Playback via a speaker or a line output.
    • Downloadable sample sketch and library.
    • Stackable design: the shield can be stacked with other shields.
    • Large user community.
    • Requires 1 Arduino UNO™ (not included).
    Specifications:
    • Audio sample frequency: 8 kHz.
    • Uses pin 10 on an Arduino UNO™ board as a Chip Select.
    • Uses the ICSP pins on an Arduino as a serial connection to the shield to free up I/O pins.
    • Memory write up to 100.000 X.
    • Dimensions: 71 x 53mm / 2.79 x 2.08"'
