ARDUINO® UNO REV.3

  • PRODUCT NAME:

  • ARDUINO® UNO REV.3

  • ART NO:

  • ARDUINO-UNO-R3

  • Description:

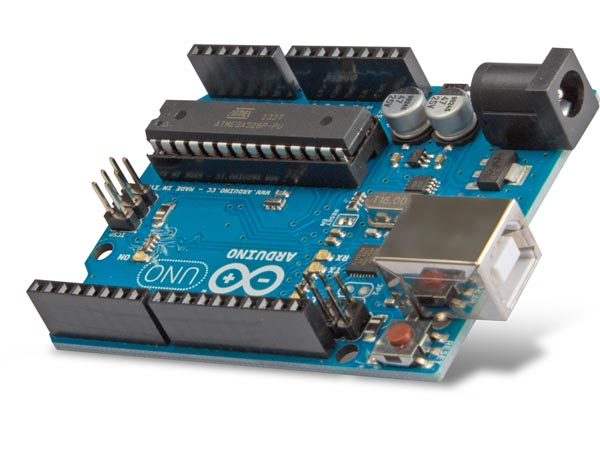

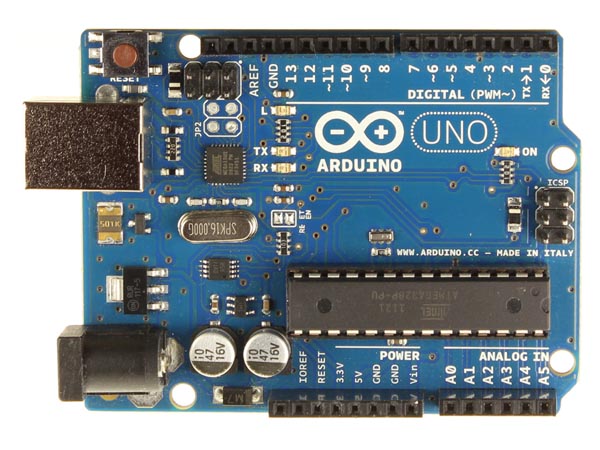

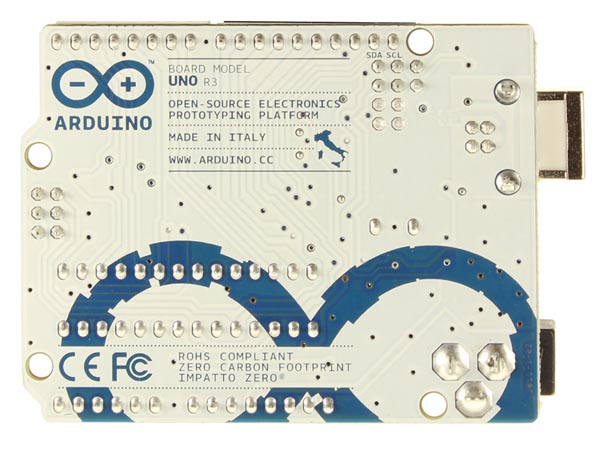

  • The Arduino Uno is a microcontroller board based on the ATmega328. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started. The Uno differs from all preceding boards in that it does not use the FTDI USB-to-serial driver chip. Instead, it features the Atmega16U programmed as a USB-to-serial converter.
    Features:
    • Digital I/O pins: 14 (of which 6 provide PWM output)
    • Analogue input pins: 6
    • Contains: 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header, and a reset button
    Specifications:
    • Power supply: 6-20 V max. (adapter not included)
    • Microcontroller: ATmega328
    • Digital I/O pins: 14 (of which 6 provide PWM output)
    • DC current per I/O pin: 40 mA
    • DC current for 3.3 V pin: 50 mA
    • Analogue input pins: 6
    • Flash memory: 32 kB (ATmega328) of which 0.5 KB used by bootloader
    • SRAM: 2 kB (ATmega328)
    • EEPROM: 1 kB (ATmega328)
    • Clock speed: 16 MHz
