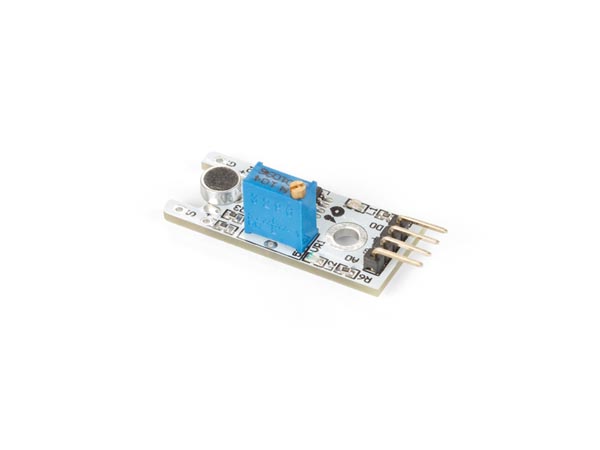

ARDUINO® COMPATIBLE MICROPHONE SOUND SENSOR MODULE

  • PRODUCT NAME:

  • ARDUINO® COMPATIBLE MICROPHONE SOUND SENSOR MODULE

  • ART NO:

  • VMA309

  • Description:

  • High sensitivity sound detection module with 2 outputs. AO - analogue output, real-time output voltage signal of the microphone. DO - the digital output depends on the sound intensity and the threshold that has been set.
    Specifications:
    • Voltage: 3.3 to 5 VDC
    • Outputs: one analogue + one digital output
    • Fixation: 1 mounting screw hole 3 mm
    • 2 indicator LEDs: 1 power indicator + 1 comparator output indicator
    • Frequency response: 50 Hz - 20 KHz
    • Impedance: 2.2 K Ohm
    • Sensitivity: 48 - 66 dB
    • Operating temperature: -40 to +85°C
    • Dimensions: 44 x 15 x 10 mm
    • Weight: 4 g
