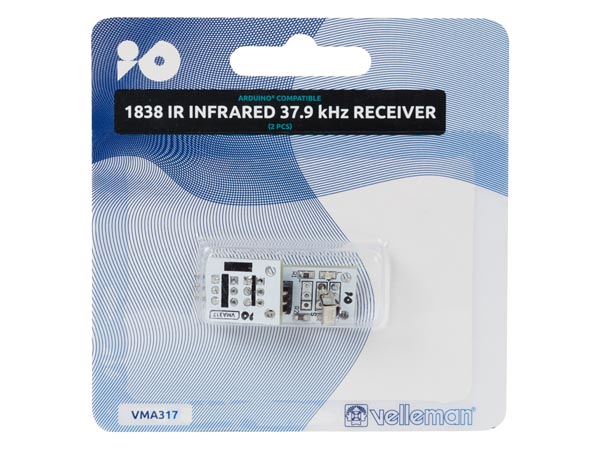

ARDUINO® COMPATIBLE 1838 IR INFRARED 37.9 kHz RECEIVER (2 pcs)

  • PRODUCT NAME:

  • ARDUINO® COMPATIBLE 1838 IR INFRARED 37.9 kHz RECEIVER (2 pcs)

  • ART NO:

  • VMA317

  • Description:

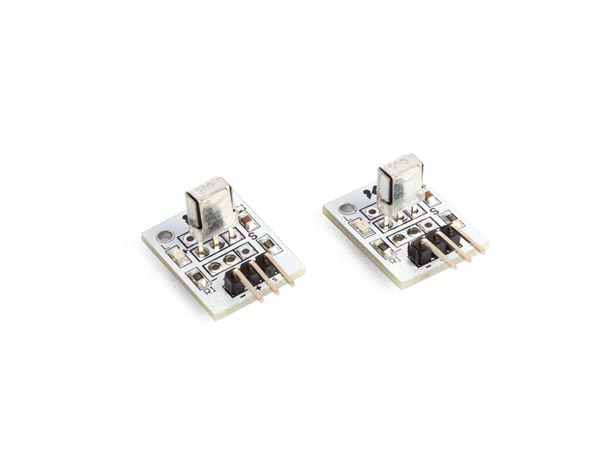

  • The VMA317 (1838) is a miniaturized infrared receiver for remote control and other applications requiring improved ambient light rejection.
    Features:
    • Photodetector and preamplifier in one package
    • Internal filter for PCM frequency
    • Inner shield, good anti-interference ability
    • High immunity against ambient light
    • Improved shielding against electric field disturbance
    • 3.0 V or 5.0 V supply voltage; low power consumption
    • TTL and CMOS compatibility
    Specifications:
    • Supply voltage: 3 to 5 VDC
    • Max. supply current: 1.5 mA
    • B.P.F. centre frequency: 37.9 KHz
    • Dimensions: 28 x 15 x 10 mm
