8 Core MTP to LC SM Riboon Fiber Patch Cord

  • PRODUCT NAME:

  • 8 Core MTP to LC SM Riboon Fiber Patch Cord

  • ART NO:

  • P12MTL

  • Description:

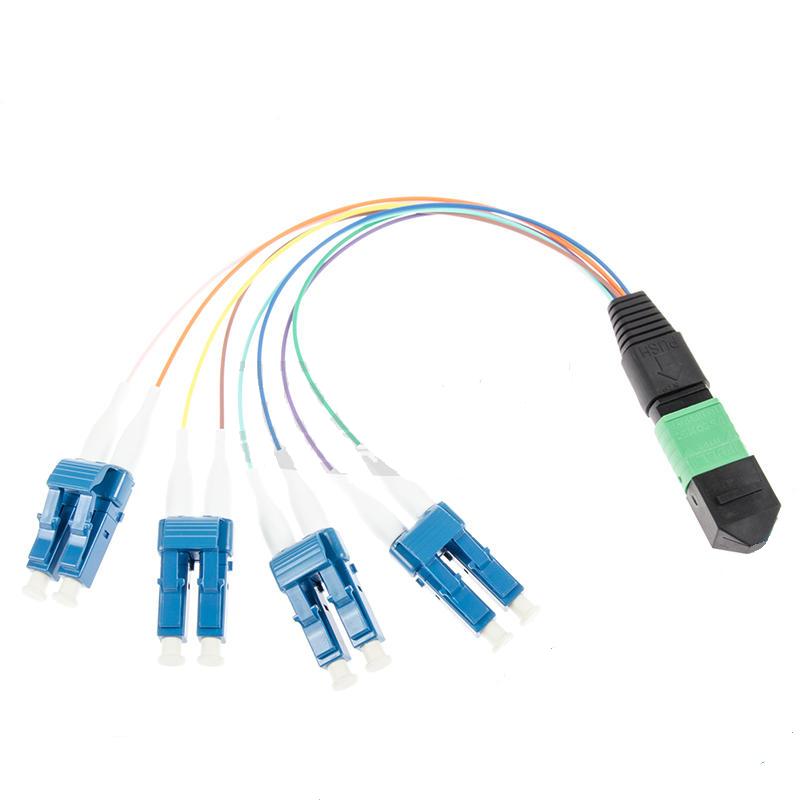

  • 8 Core Fiber Optic Single Mode MTP To LC 0.9mm Ribbon Patch Cable Assembly

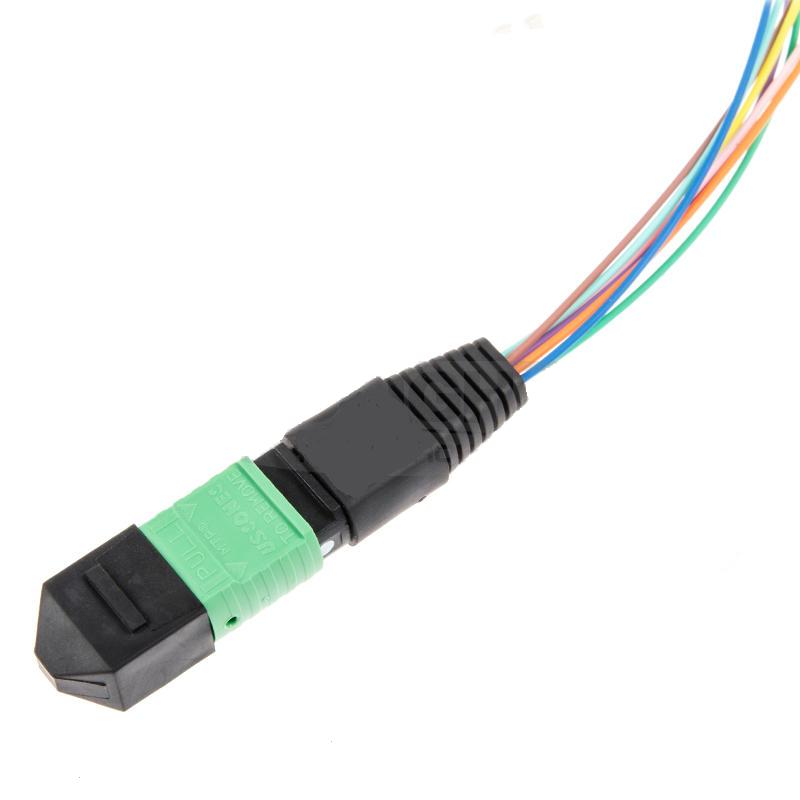

    • MTP Fanout Patch Cord is a cable attached with MTP connector on one end and generic connectors on the other end like SC, LC, etc. The cable can be mini-core (Round) or ribbon (Flat) type. 8 fiber MPO (MTP) fanout patch cord is widely used in a fiber-optic network. Upon request, we can also supply 12, 24, 48, 72, 144 fibers. Available with male or female and Available with OS2, OM1, OM2, OM3, OM4 fiber.

    Specifications:

    Product Name
    8 Core MTP to LC/PC Fiber Patch Cable
    Working Temperature (°C)
    -40 — +80
    Insertion Loss (dB)
    ≤0.75
    Return Loss( dB)
    ≥55
    Tensile strength(N)
    ≥55
    Durability(Times)
    <0.20 dB typical change, 1000 matings


    Apply To: Use in high-speed multi-channel data, voice & video applications, Gigabit Ethernet Network; Access Network, Telecom, Optical Test Equipment, Long-Distance LANs, CATV & Telecom Backbones, Industry, and Military Application.

    Feature:
    1. New miniature Breakout Module – saving space within patching
        management the area the same time providing a robust,
        and safe transition between cable and tails
    2. Female MTP/MPO connectors for direct connection into
        QSFP+ transceiver
    3. 4 x 2mm Tails Uniboot DX version available improving
        rack patching management
    4. OM3, OM4, OS1/2, fiber versions
    5. 3mm OD Patch/ 4.5mm OD Trunk MicroCable Versions
    6. LSZH, OFNP, OFNR cable jacket types selection
    7. Factory terminated and tested
    8. Optimized performance - Low loss MPO/MTP Elite and discrete
        LC Premium connectors and OM4 fiber assures low insertion
        losses and power penalties in a tight power budget high-speed
        network environment
    9. Rapid deployment Factory terminated modular system saves
        installation and reconfiguration time during moves,
        adds, and changes;
    10. Reliability 100% tested - a combination of high-quality
          components and manufacturing quality control guarantees
          product to the highest standard.
