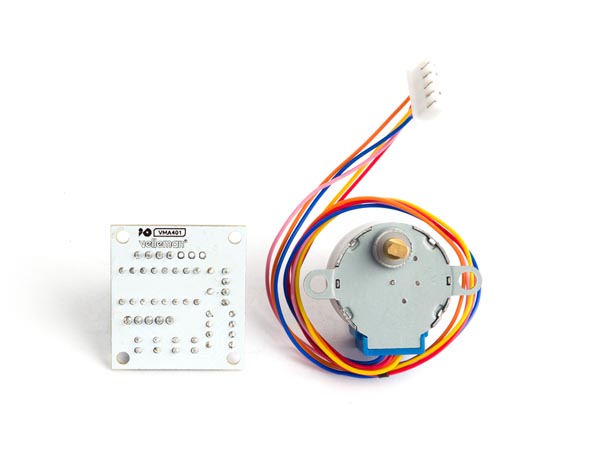

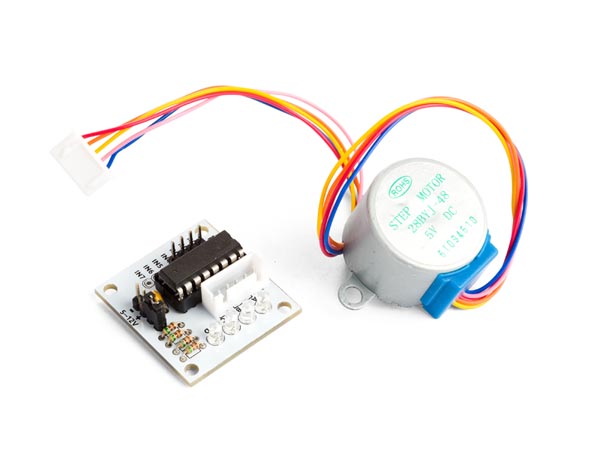

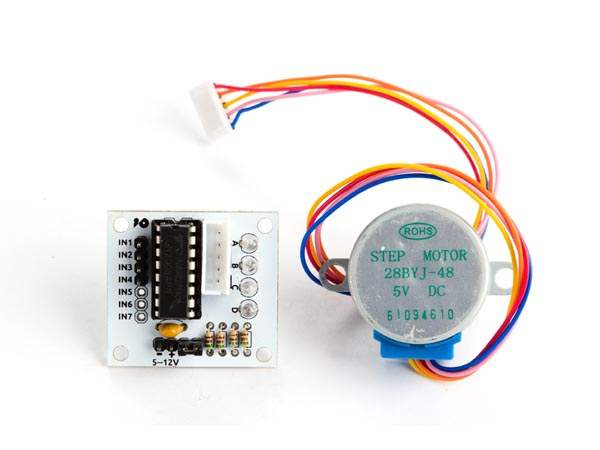

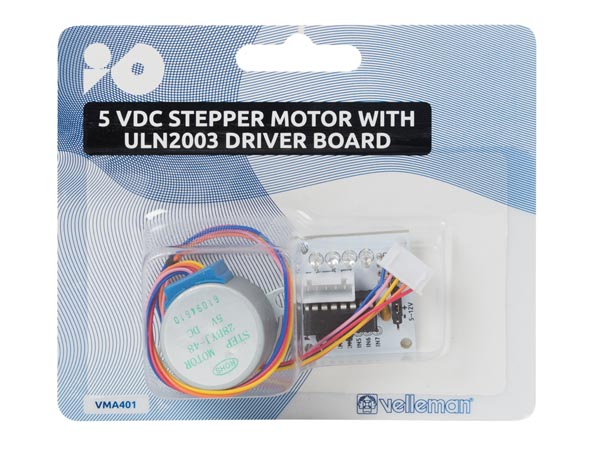

5 VDC STEPPER MOTOR WITH ULN2003 DRIVER BOARD

  • PRODUCT NAME:

  • 5 VDC STEPPER MOTOR WITH ULN2003 DRIVER BOARD

  • ART NO:

  • VMA401

  • Description:

  • A small and versatile motor and driver set. This 5 VDC stepper motor controlled by the ULN2003 driver can be used with any Arduino® or compatible boards via jumper leads. Four-phase LED indicates the status of the stepper motor.
    Features:
    • With LED step indicators
    • Included: 5 V stepper motor
    • ULN2003 controller module
    • Cable
    Specifications:
    • Operating voltage: 5 VDC
    • Steps / revolution: 64
    • Controller: ULN2003
    • Motor diameter: 28 mm
    • Reduction ratio: 1:64
    • Number of phases: 4
    • Dimensions: 35 x 32 x 10 mm
