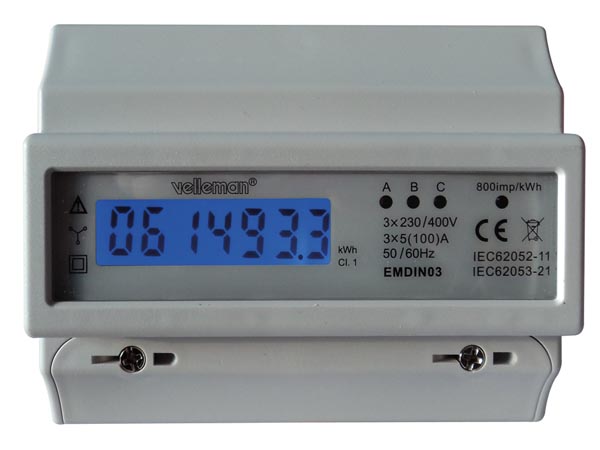

3 PHASE - 7 MODULE DIN-RAIL MOUNT kWh METER - FOR PROFESSIONAL USE
ART NO:
EMDIN03
Description:
Three-phase four-wire electronic DIN rail kWh meter with pulse counting output.
Very accurate, reliable, light, and compact device.
Features:
LCD display (with blue backlight)
Pulsed output
LED indicator
The current specification is an important parameter for energy meters as it signifies a meter's ability to accurately measure the power consumed by a user's electrical load. There are generally two parts to this specification: the basic current (Ib) for direct-connected meters and the maximum current I max. Of these current ratings, you will typically see the current specification defined in terms of Ib with the I max value shown in parentheses. For example, some common values for the energy meter current specification include 5 (40) A, 5 (80) A or 10 (100) A.
Specifications:
Voltage: 3 x 230 / 400 V
Current: 10 (100) A
Accuracy class: 1.0
Frequency: 50 / 60 Hz
Display mode: LCD 6+1 digits = 999999.9 kWh
Power consumption: <=2 W (10 VA)
Temperature range: -20 to 55 °C
LED indicator: 1 blink per pulse
Pulsed output: 800 imp/kWh
Voltage: 12 to 27 V
Current: 27 mA
Impulse width: 90 ms
Dimensions: 122.5 x 115 x 65 mm
Weight: 415 g
Notes:
A qualified technician should install and service this device.
The measurements provided by this device are for information purposes only.
