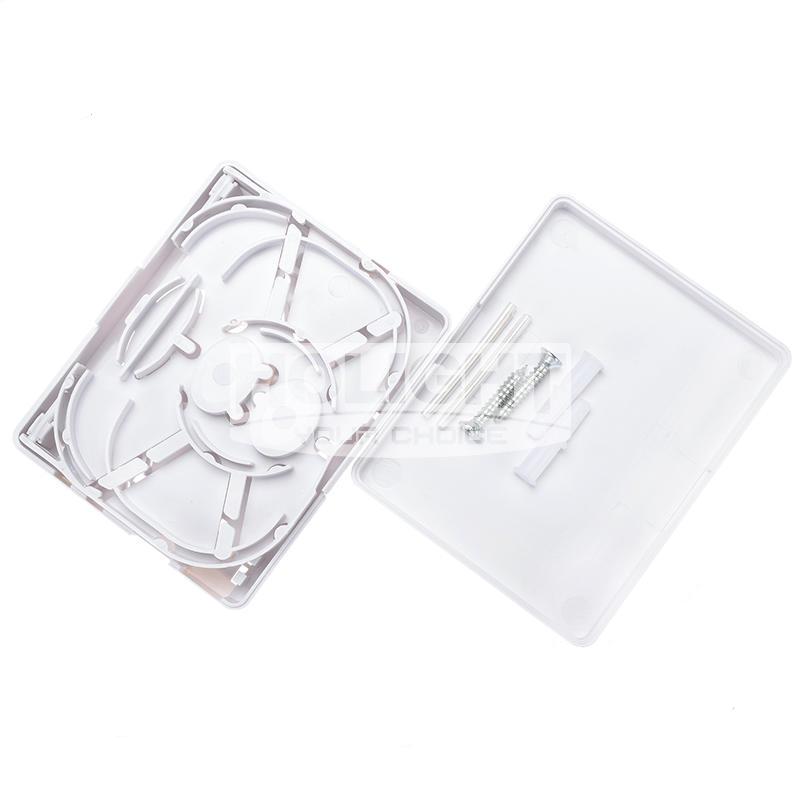

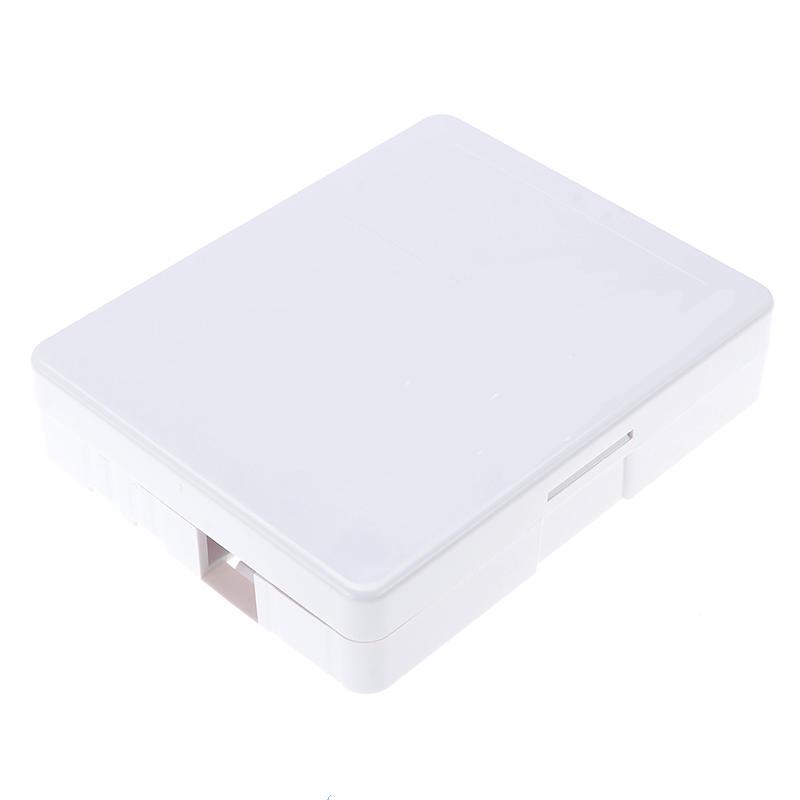

2 Ports Fiber Optic Faceplate for FTTH

  • PRODUCT NAME:

  • 2 Ports Fiber Optic Faceplate for FTTH

  • ART NO:

  • HFP8006

  • Description:

  • 2 Ports Indoor Wall Mounted Faceplate for FTTx Network
    • HFP8006 is an indoor terminal applied in the FTTX network to connect the drop cable and ONU devices through fiber port. HFP8006 covers the capacity of 1core, 2cores, and 4 cores and supports splicing, mechanical connection, and FMC, wall-mounted installation.
    Model
    HFP8006
    Application
    3.0 x 2.0 mm drop cable or indoor cable
    Fiber diameter
    125μm ( 652 & 657 )
    Tight Cladding Diameter
    250μm & 900μm
    Mode of Application
    SM & MM
    Tensile Strength
    >50 N
    Adapter
    LC & SC
    Output
    2
    End-use temperature
    -40～+85℃
    Dimensions
    80*100*23 mm

    Apply To: 1. The telecommunication network, metropolitan area network, optical fiber communication system; 2. Optical fiber broadband access network, FTTH optical fiber; 3. Optical fiber distribution frame, frame type, and wall type optical fiber distribution unit.

    Feature:
    1. Excellent ergonomics design, graceful appearance,
        and convenient operation
    2. Plug fiber without having to open the shell, easily accessible
        fiber operation, port vertically downward to avoid causing
        personal injury
    3. White color, graceful style and good adaptability to the
        environment
    4. Fiber cable inlets in every direction support the cable inlets for
        different scenarios
    5. Friendly operation interface, high reliability
    6. Introductions clear, effectively prevent the miss-operation
    7. Low construction cost
    8. Easy operation, saving installation working hours, lower costs
