2-CHANNEL USB PC OSCILLOSCOPE

  • PRODUCT NAME:

  • 2-CHANNEL USB PC OSCILLOSCOPE

  • ART NO:

  • PCSU1000.

  • Description:

  • The PCSU1000 digital storage oscilloscope uses the power of your PC to visualize electrical signals. Its high sensitive display resolution, down to 0.15mV, combined with a high bandwidth and a sampling frequency of up to 1GHz are giving this unit all the power you need.
    The USB connection makes this unit a snap to set-up, no external power required! In the field measurements using a lap-top computer have never been this easy.
    This scope comes in a stylish vertical space saving design.
    Powerful software will fulfill all your needs, but for those who like a challenge; a DLL is supplied, which allows you to create your own application.
    Features:

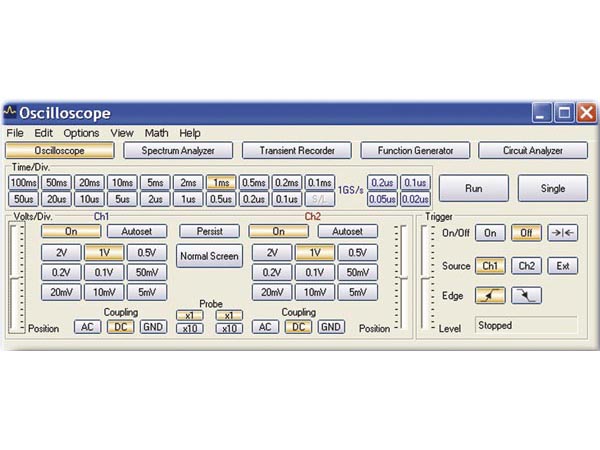

    • oscilloscope:
      • time base : 20ns to 100ms per division
      • trigger source: CH1, CH2, EXT or free run
      • trigger edge : rising or falling
      • trigger level : full-screen adjustable
      • step interpolation : linear or smoothed
      • markers for : voltage and time/frequency
      • input range : 5mV to 2V/division
      • input sensitivity: 0.15mV display resolution
      • auto set-up function and X10 option
      • pre-trigger function
      • readouts: True RMS, dBV, dBm, p to p, Duty cycle, Frequency…
      • record length: 4K samples / channel
      • real time sampling frequency: 1.25kHz to 50MHz
      • sampling frequency for Repetitive signals: 1GHz
    • spectrum analyser:
      • frequency range : 0 .. 1.2kHz to 25MHz
      • linear or logarithmic timescale
      • operating principle : FFT (Fast Fourier Transform)
      • FFT resolution : 2048 lines
      • FFT input channel : CH1 or CH2
      • zoom function
      • markers for amplitude and frequency

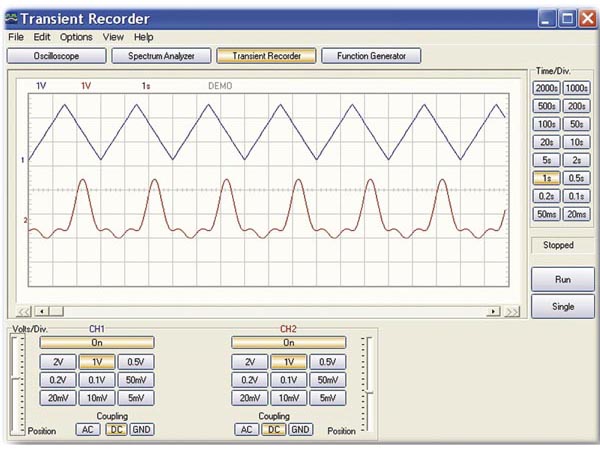

    • transient recorder:
      • timescale: 20ms/Div to 2000s/Div
      • max. record time: 9.4hour/screen
      • automatic storage of data
      • automatic recording for more than 1 year
      • max. number of samples : 100/s
      • min. number of samples : 1 sample/20s
      • markers for time and amplitude
      • record and display of screens
    Specifications:
    • general information:
      • inputs: 2 channels, 1 external trigger input
      • input impedance : 1 Mohm / 30pF
      • bandwidth: DC to 60 MHz ±3dB
      • maximum input voltage : 30V (AC + DC)
      • input coupling : DC, AC and GND
      • Supply from USB port (500mA)
      • dimensions: 205 x 55 X 175 / 8.2 x 2.2 x 7"
    • minimum system requirements:
      • IBM compatible PC
      • Win98SE or higher (not compatible with Windows 10)
      • SVGA display card (min. 800x600, 1024x768 recommended)
      • mouse
      • USB port 1.1 or 2.0 compatible
      • CD Rom player
