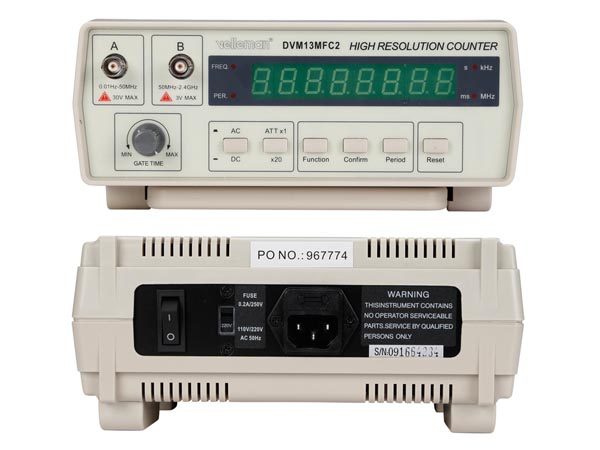

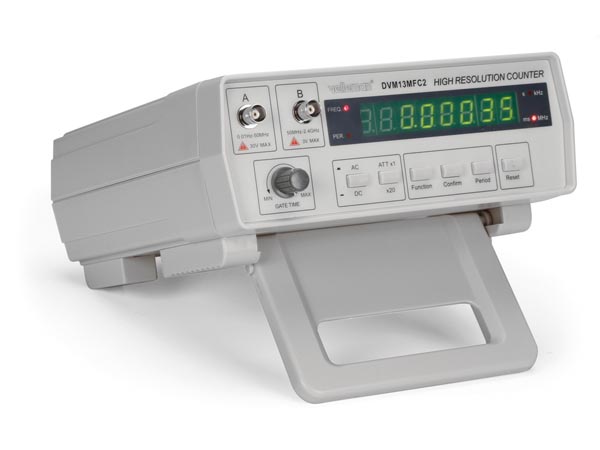

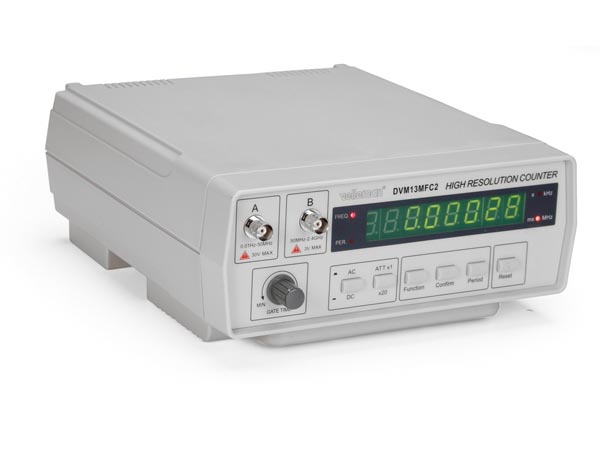

2.4 GHz HIGH RESOLUTION FREQUENCY COUNTER

  • PRODUCT NAME:

  • 2.4 GHz HIGH RESOLUTION FREQUENCY COUNTER

  • ART NO:

  • DVM13MFC2

  • Description:

  • Features:
    • 8-digit green LED display with indicators.
    • Two-channel operating mode memory.
    • Adjustable range and gate time.
    • High-safety design as per IEC 1010, CAT. II
    Specifications:
    • Frequency range: 0.01 Hz to 2.4 GHz
    • Accuracy: time base error x frequency ± 1 digit
    • Gate time: 100 ms to 10 s
    • Input characteristics:
      • Channel A:
        • Frequency range:
          • DC coupling: 0.01 Hz to 100 Hz
          • AC coupling: 100 Hz to 50 MHz
        • Sensitivity: 80 mVrms
        • Impedance: 1 Mohm
        • Max. input voltage: 30 V
      • Channel B:
        • Frequency range: 50 MHz to 2.4 GHz
        • Sensitivity: 50 mVrms
        • Impedance: 50 ohm
        • Max. input voltage: 3 V
    • Power supply: 110/220 VAC ± 10 %, 50/60 Hz
    • Max. consumption: 5 W
    • Dimensions: 270 x 215 x 100 mm
    • Weight: 1.6 kg
    • Test cable not included
