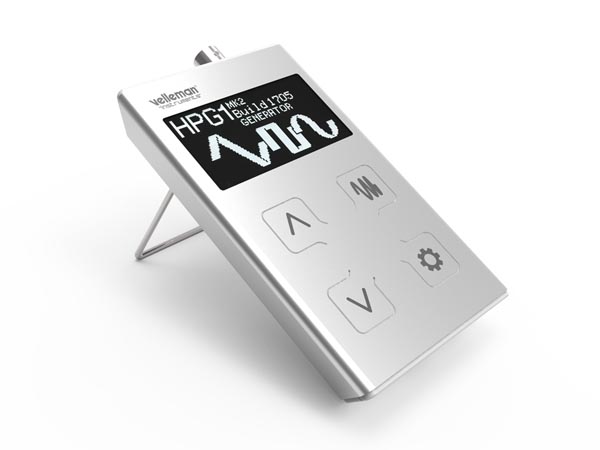

1 MHz POCKET FUNCTION GENERATOR

  • PRODUCT NAME:

  • 1 MHz POCKET FUNCTION GENERATOR

  • ART NO:

  • HPG1

  • Description:

  • Features:
    • DDS type generator (Direct Digital Synthesis). Sweep function with a bi-direction option.  OLED screen.
    • Operates on 4 x 1.5V AAA batteries (not included). Signature white back casing.
    Specifications:
    • DAC resolutions: 10 bits.
    • Frequency range: from 1Hz to 1.000.000Hz (0.01 %@1kHz). Frequency steps: 1 Hz, 10 Hz, 100 Hz, 1 kHz and 10 kHz.
    • Waveforms: sine, square and triangle.
    • Output voltage: max. 8 Vpp. Real output level measurement: dBm / Vrms or Vpp readout (± 3 %).
    • Typical sine wave distortion (THD): < 0.1% @ 1 kHz / 0dB / 600 Ohm.
    • Square wave rise/fall time: typ. 0.2 µs. Output impedance: 50 Ohm.
    • Dimensions: 114 x 68 x 22mm / 4.48 x 2.67 x 0.86". Power Consumption: 70 mA max.
    • Battery life: about 15 hours on quality alkaline batteries.
